Unit · AXIAL-PISTON MOTOR
AL A6V E 250 EP2 /63W2-VZM088 B-SO216R902476521
Axial piston motor Bosch Rexroth series A6VE, type code ALA6VE250EP2/63W2-VZM088B-SO216, material number R902476521. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: plug-in motor (E). Control device 250: proportional control, electric (as standard, with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Direction of rotation 250: viewed on drive shaft, bi-directional (W). Setting range for displacement 250: vg min > 0.4 Vg max to 0.8 Vg max Vg max = Vg max to 0.8 Vg max (2). Sealing material 250: FKM (fluoroelastomer) shaft seal (V). Drive shaft 250: splined shaft DIN 5480 (Z). Mounting flange 250: based on ISO 3019-2 4-hole (M). Special version no. 216.
- Number
- R902476521
- Type code
- AL A6V E 250 EP2 /63W2-VZM088 B-SO216
- Group
- A6VE 250
- Edition
- 06/2020

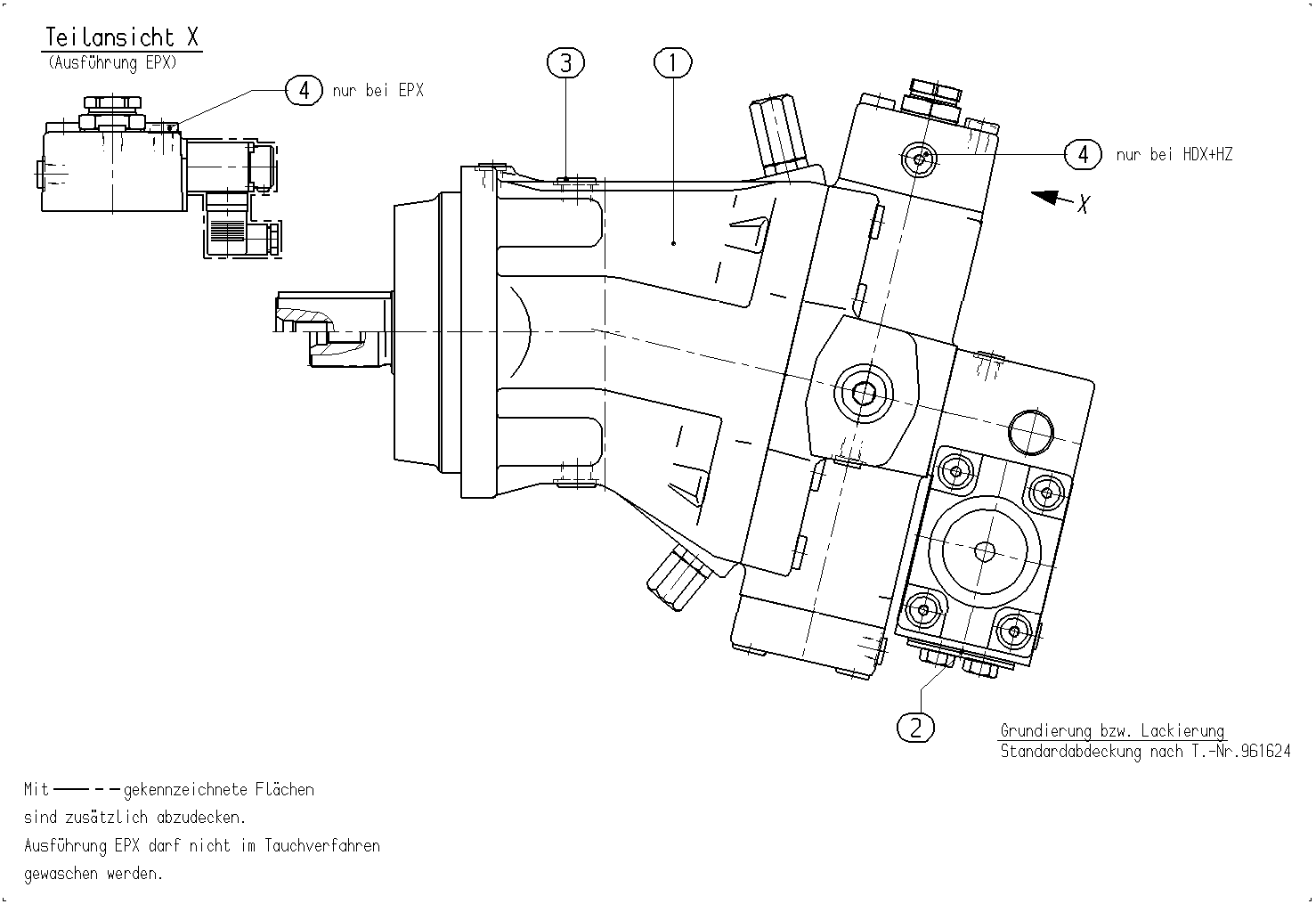

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902476523 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902400584 | FLANGE COVER | 2 | ||
| R902602011 | SEAL SCREW | 1 | ||
| R902602008 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Plug-in motor | E |
| Control device 250 | Proportional control, electric (as standard, with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Series 250 | Series 6, index 3 | 63 |
| Direction of rotation 250 | Viewed on drive shaft, bi-directional | W |
| Setting range for displacement 250 | Vg min > 0.4 Vg max to 0.8 Vg max Vg max = Vg max to 0.8 Vg max | 2 |
| Sealing material 250 | FKM (fluoroelastomer) shaft seal | V |
| Drive shaft 250 | Splined shaft DIN 5480 | Z |
| Mounting flange 250 | Based on ISO 3019-2 4-hole | M |
| At Vg max (standard for HD, HZ, EP, EZ, DA) | B | |
| Special version | -S |
