Unit · CONTROL
V A4VSG 180 EPB /30R -PR902476538
Control Bosch Rexroth series A4VSG, type code VA4VSG180EPB/30R-P, material number R902476538. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P).
- Number
- R902476538
- Type code
- V A4VSG 180 EPB /30R -P
- Group
- A4VSG 180
- Edition
- 07/2020

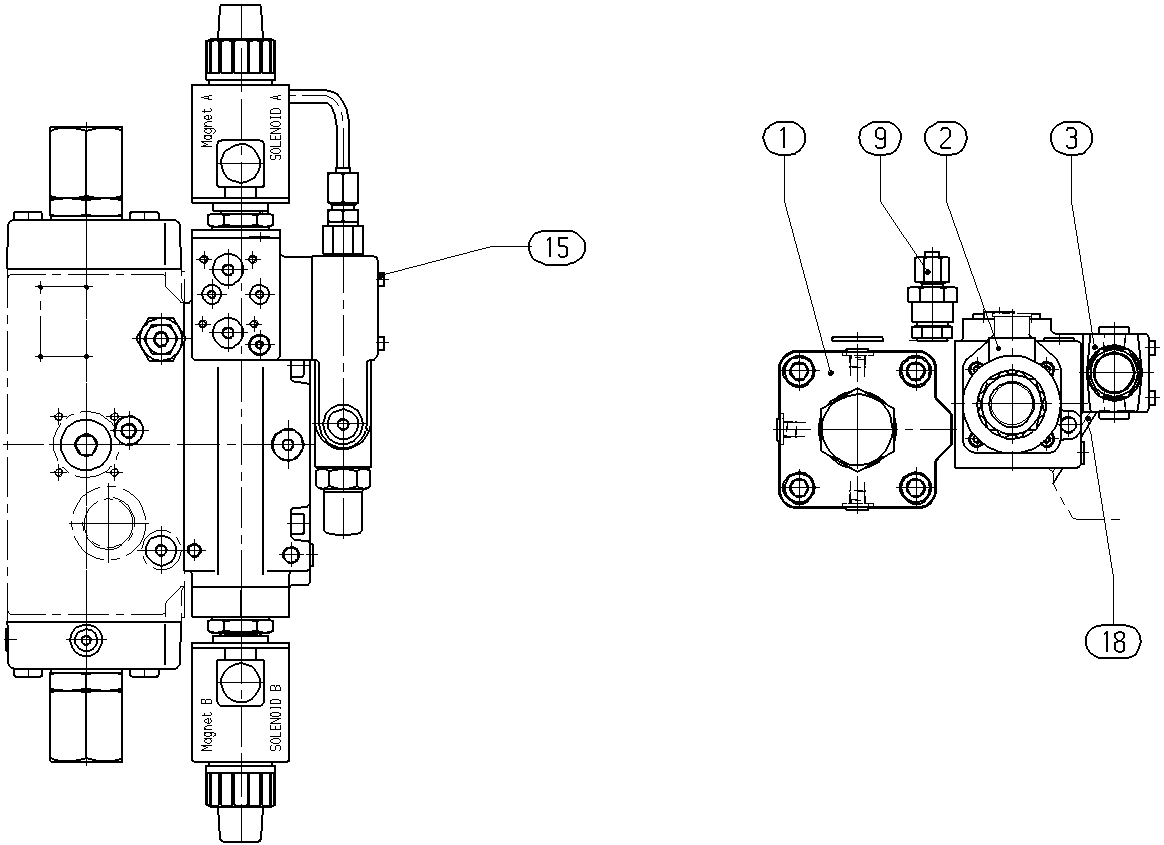

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910997060 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902423144 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910989257 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910920008 | CHECK VALVE | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R902403696 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 180 | 180 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
