Unit · AXIAL-PISTON PUMP
A A10VSO 45 DFR /31R-VPA12H00R902476552
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO45DFR/31R-VPA12H00, material number R902476552. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DFR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Connector for solenoids: HIRSCHMANN connector – without suppressor diode (H).
- Number
- R902476552
- Type code
- A A10VSO 45 DFR /31R-VPA12H00
- Group
- A10VSO 45
- Edition
- 06/2020

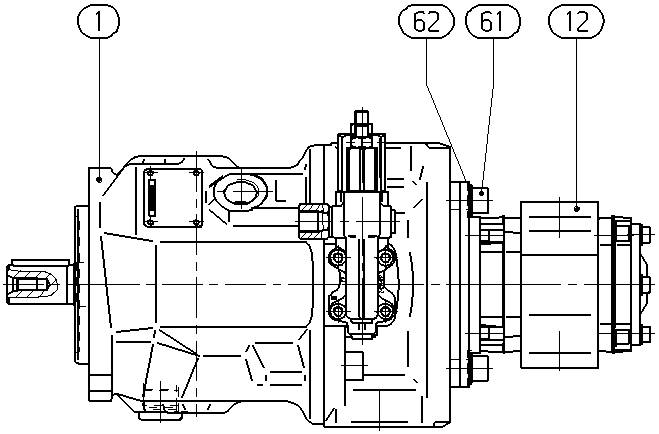

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910923557 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R900938281 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R910109606 | SOCKET HEAD CAP SCREW | 2 | ||
| R902650189 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with flow controller X-T open hydraulic | DFR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Connector for solenoids | HIRSCHMANN connector – without suppressor diode | H |
