Unit · AXIAL-PISTON PUMP
A A10V O 71 DFLR/31L-VSC92N00 -SO 52R902476988
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFLR/31L-VSC92N00-SO52, material number R902476988. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom (92). Through drive: without through drive (N00). Special version no. 52.
- Number
- R902476988
- Type code
- A A10V O 71 DFLR/31L-VSC92N00 -SO 52
- Group
- A10VO 71
- Edition
- 06/2020

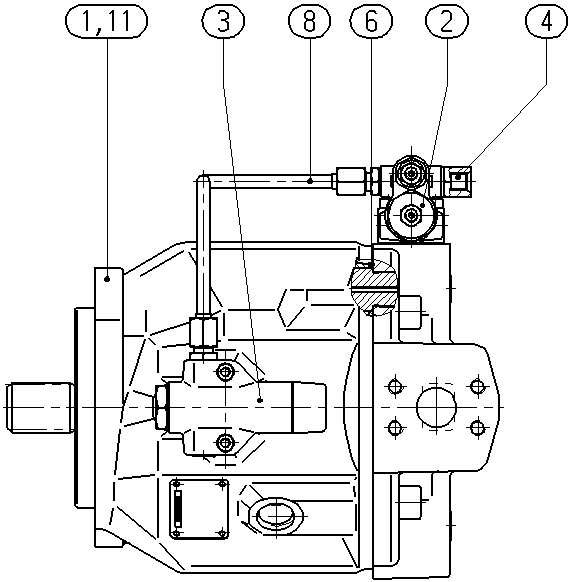

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902501607 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450439 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910932938 | ADAPTER Assembly parts list →L | 1 | ||
| R910917867 | SIDE MARKER RING | 1 | ||
| 10 | R910963344 | PIPING Assembly parts list →L | 1 | |
| R910909313 | POWER DIAGRAM | 1 | ||
| 70 | R902421945 | SHIPPING PROTECTION | 1 | |
| 71 | R902421949 | SHIPPING PROTECTION | 1 | |
| 72 | R902603190 | SEAL SCREW | 1 | |
| 73 | R902602014 | SEAL SCREW | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom | 92 |
| Through drive | Without through drive | N00 |
Other versions 9
- R902503543 A A10V O 71 DFLR/31L-VSC92N00
- R902554661 A A10V O 71 DFLR/31L-VSC92N00
- R902567804 A A10V O 71 DFLR/31L-VSC92N00
- R902570785 A A10V O 71 DFLR/31L-VSC92N00 -SO160
- R902572704 A A10V O 71 DFLR/31L-VSC92N00 -SO160
- R902501606 A A10V O 71 DFLR/31L-VSC92N00 -SO413
- R902505438 AA10VO71DFLR/31L-VSC92N00-SO793
- R902501605 AL A10V O 71 DFLR/31L-VSC92N00 -SO413
- R902575096 AL A10V O 71 DFLR/31L-VSC92N00 -SO793
