Unit · AXIAL-PISTON PUMP

A A10V O 71 DFR /31R-VSC92G40 -SO413R902476991

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFR/31R-VSC92G40-SO413, material number R902476991. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open Hydraulic (DFR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom (92). Special version no. 413.

Number: R902476991
Type code: A A10V O 71 DFR /31R-VSC92G40 -SO413
Group: A10VO 71
Edition: 06/2020

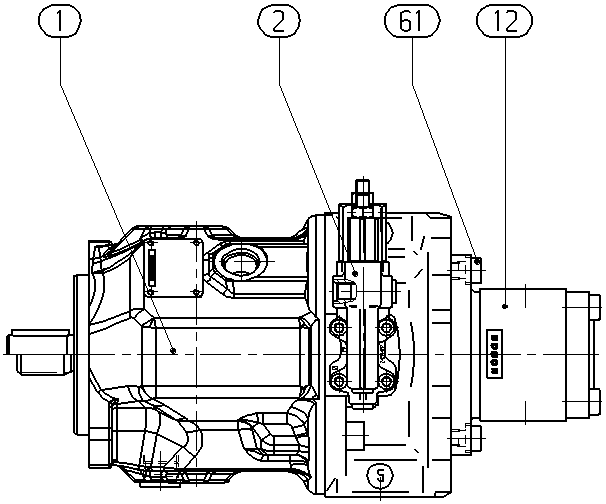

A A10V O 71 DFR /31R-VSC92G40 -SO413 — Drawing

Pos.	Number	Name	Qty
	R902476398	AXIAL-PISTON PUMP Assembly parts list →L	1
	0510525072	HYDRAULIC GEAR PUMPL	1
	R910109606	SOCKET HEAD CAP SCREW	2
70	R902421945	SHIPPING PROTECTION	1
71	R902421949	SHIPPING PROTECTION	1
72	R902603190	SEAL SCREW	1
73	R902602014	SEAL SCREW	1
75	R909830326	NAMEPLATE	1
75	R902448945	FLANGE COVER	1
76	R902448945	FLANGE COVER	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	71	71
Control device	With flow controller X-T open Hydraulic	DFR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom	92

Other versions 1

R902476990 AL A10V O 71 DFR /31R-VSC92G40 -SO413
