Unit · AXIAL-PISTON PUMP
A A10V O140 FHD /31R-VSD62K68R902477191
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140FHD/31R-VSD62K68, material number R902477191. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68).
- Number
- R902477191
- Type code
- A A10V O140 FHD /31R-VSD62K68
- Group
- A10VO 140
- Edition
- 06/2020

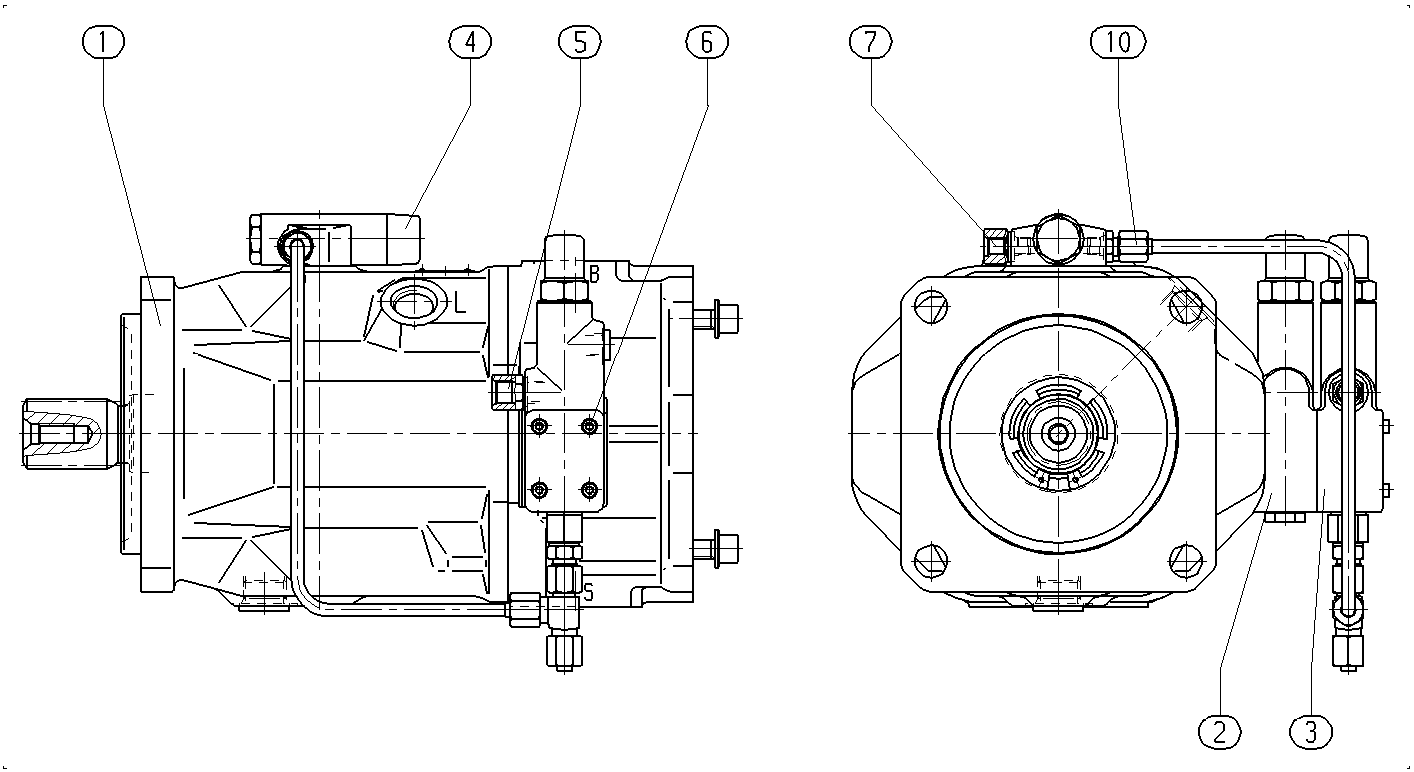

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902477189 | BASE UNIT Assembly parts list →L | 1 | ||
| R910924992 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902427327 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533801 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902451979 | ADAPTER Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910902409 | ADAPTER Assembly parts list →L | 1 | ||
| R910961068 | PIPING Assembly parts list →L | 1 | ||
| 70 | R902421947 | SHIPPING PROTECTION | 1 | |
| 71 | R902421950 | SHIPPING PROTECTION | 1 | |
| 72 | R902603191 | SEAL SCREW | 1 | |
| 73 | R902602015 | SEAL SCREW | 1 | |
| 74 | R902602977 | FLANGE COVER | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 | |
| 75 | R902602014 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2/4-hole | D |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
