Unit · AXIAL-PISTON PUMP
A A10V O 63 DRS/53R-VRD12K68 -SO 23R902477307
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO63DRS/53R-VRD12K68-SO23, material number R902477307. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DRS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "S" however for higher torque (R). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 23.
- Number
- R902477307
- Type code
- A A10V O 63 DRS/53R-VRD12K68 -SO 23
- Group
- A10VO 63
- Edition
- 06/2020

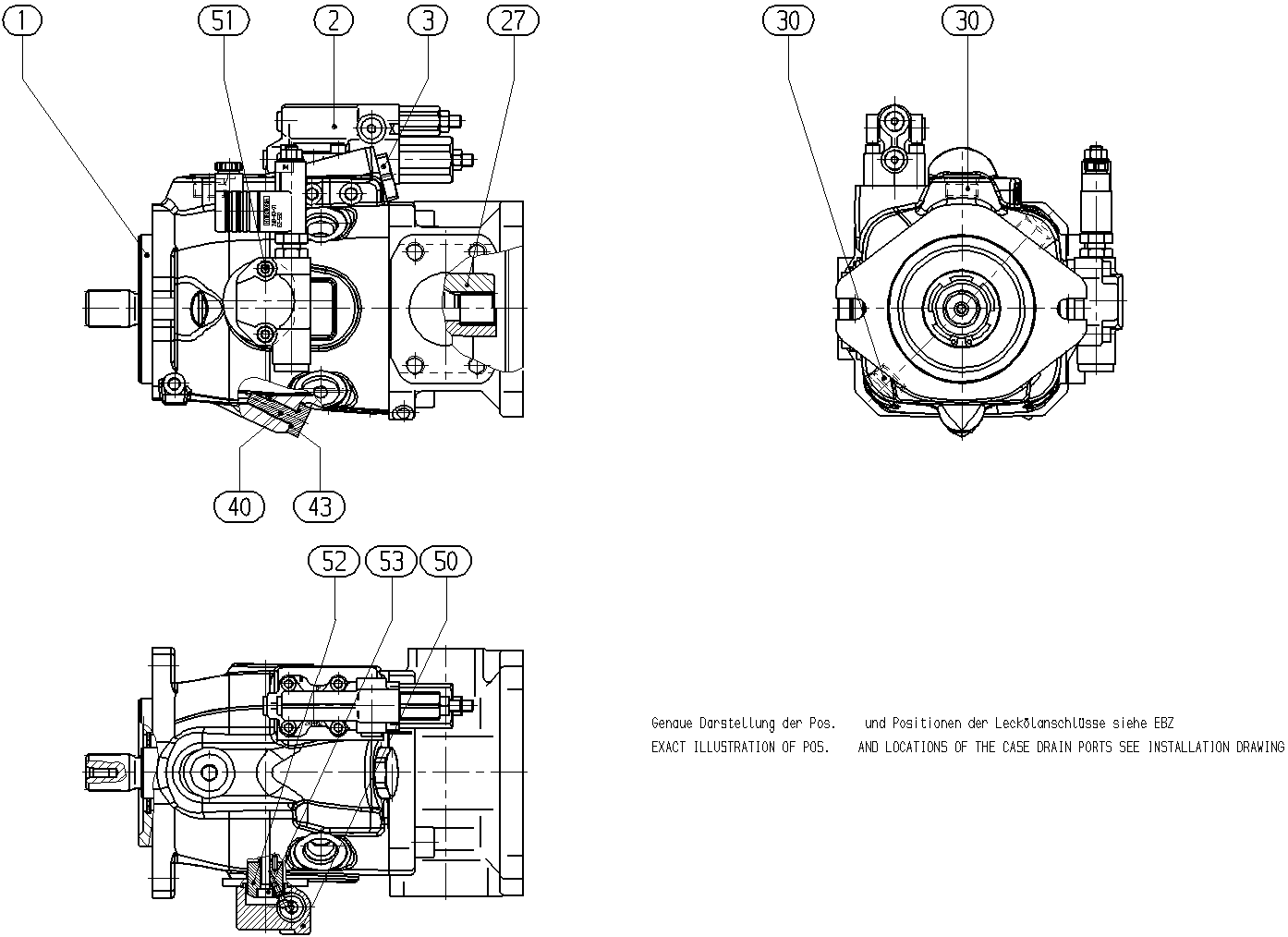

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902476890 | BASE UNIT Assembly parts list →L | 1 | ||
| R902472686 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902471690 | CONTROL Assembly parts list →L | 1 | ||
| R902436083 | SPLINED COUPLING | 1 | ||
| R910967343 | SCREW PLUG | 2 | ||
| R902427032 | STOP SCREW | 1 | ||
| R910804886 | O-RING | 1 | ||
| R910986163 | VALVE | 1 | ||
| R910109339 | SOCKET HEAD CAP SCREW | 2 | ||
| R910986150 | CARRIER | 1 | ||
| R910109339 | SOCKET HEAD CAP SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 63 | 63 |
| Control device | with flow controller X-T plugged with flushing function | DRS |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "S" however for higher torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 4-hole | D |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
