Unit · AXIAL-PISTON PUMP
AL A10V O 71 DFR1/31R-VSC42L22 -SO413R902477329
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO71DFR1/31R-VSC42L22-SO413, material number R902477329. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom (42). Special version no. 413.
- Number
- R902477329
- Type code
- AL A10V O 71 DFR1/31R-VSC42L22 -SO413
- Group
- A10VO 71
- Edition
- 06/2020

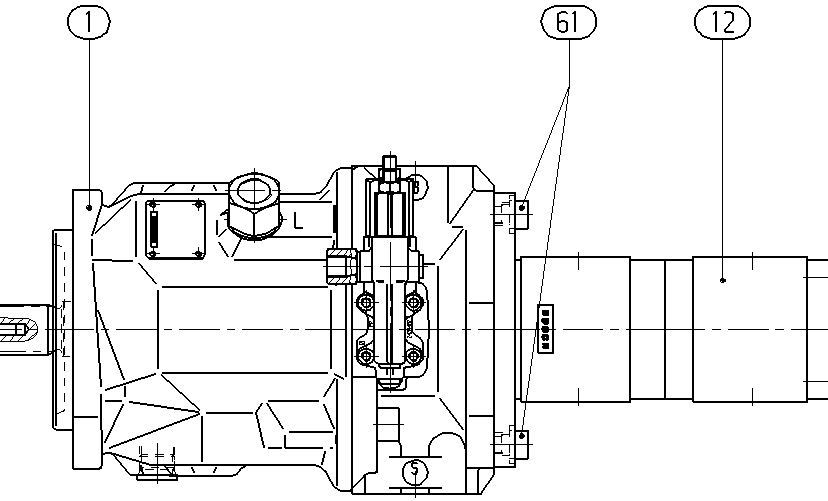

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902473802 | BASE UNIT Assembly parts list →L | 1 | ||
| 2 | R902451608 | CONTROL VALVE Assembly parts list →L | 1 | |
| 4 | R902409426 | ADAPTER Assembly parts list →L | 1 | |
| 5 | R910934572 | ADAPTER Assembly parts list →L | 1 | |
| 0510765086 | HYDRAULIC GEAR PUMPL | 1 | ||
| R910118958 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom | 42 |
