Unit · AXIAL-PISTON PUMP

AL A10V O 28 EP1D/53R-VSC12K01PR902477459

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO28EP1D/53R-VSC12K01P, material number R902477459. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure control U = 12 V (EP1D). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P).

Number
R902477459
Type code
AL A10V O 28 EP1D/53R-VSC12K01P
Group
A10VO 28
Edition
06/2020

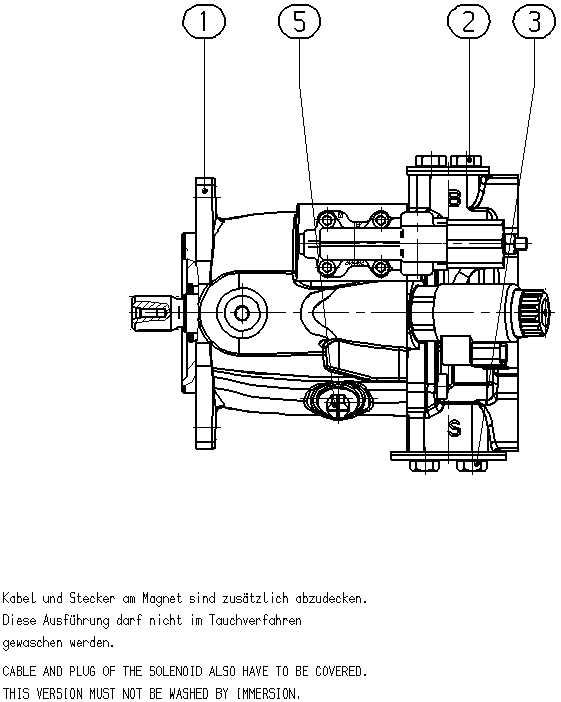

AL A10V O 28 EP1D/53R-VSC12K01P — Drawing
Pos.NumberNameQtyAdd to inquiry
R902453612AXIAL-PISTON PUMP Assembly parts list →L1
R902400574FLANGE COVER1
R902400582FLANGE COVER1
R902602016SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)2828
Control devicewith pressure control U = 12 VEP1D
SeriesSeries 5, index 353
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite12
Through drive82-2 (A) 5/8 in 9T 16/32DPK01
Connector for solenoidsDEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls)P

Other versions 1
