Unit · AXIAL-PISTON PUMP

A A10VNO 45ED 72/52R-VSC12N00P -S1457R902477511

Axial piston pump Bosch Rexroth series A10VNO, type code AA10VNO45ED72/52R-VSC12N00P-S1457, material number R902477511. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Control device: electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: higher (S). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: according to ISO 6162 laterally opposite for through drive (12). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 1457.

Number
R902477511
Type code
A A10VNO 45ED 72/52R-VSC12N00P -S1457
Group
A10VNO 45
Edition
06/2020

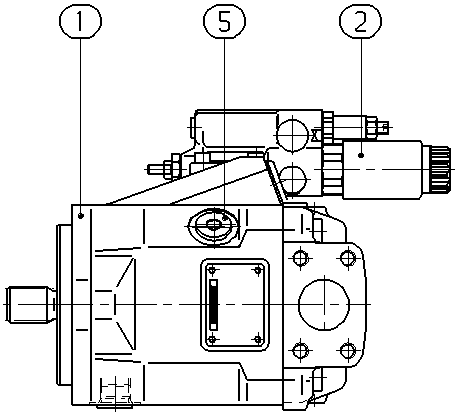

A A10VNO 45ED 72/52R-VSC12N00P -S1457 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902478185BASE UNIT Assembly parts list →L1
R902533432CONTROL VALVE Assembly parts list →L1
34R910901969SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi)A10VN
Operating modePump, open circuitO
Size (NG)4545
Control deviceelectric U = 24 VED72
SeriesSeries 5, index 252
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Drive shafthigherS
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portaccording to ISO 6162 laterally opposite for through drive12
Through driveWithout through driveN00
Connector for solenoidsDEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls)P

Other versions 12
