Unit · AXIAL-PISTON PUMP

AL A10V O100EK2DS /32L-VUC11N00 -S2860R902478117

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO100EK2DS/32L-VUC11N00-S2860, material number R902478117. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure and flow control with controller cut-off (load sensing) U = 24 V (EK2DS). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive (11). Through drive: without through drive (N00). Special version no. 2860.

Number
R902478117
Type code
AL A10V O100EK2DS /32L-VUC11N00 -S2860
Group
A10VO 100
Edition
06/2020

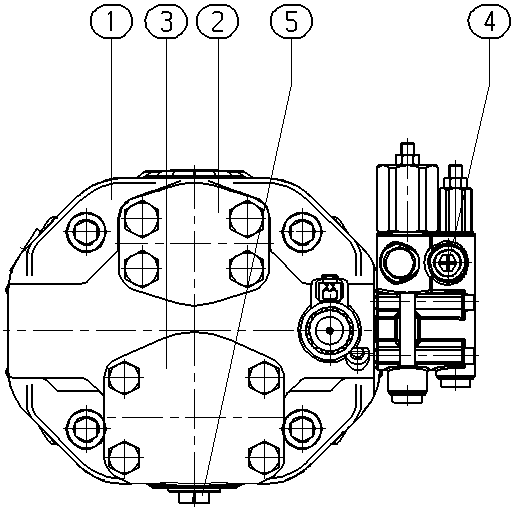

AL A10V O100EK2DS /32L-VUC11N00 -S2860 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902478116AXIAL-PISTON PUMP Assembly parts list →L1
R902400584FLANGE COVER1
R902400594FLANGE COVER1
R902602014SEAL SCREW1
R902603191SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)100100
Control devicepressure and flow control with controller cut-off (load sensing) U = 24 VEK2DS
Direction of rotationViewed on drive shaft counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftreduced diameter, limited suitability for through driveU
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive11
Through driveWithout through driveN00

Other versions 11
