Unit · AXIAL-PISTON PUMP

AL A10V O45EP2ED/53L-VSC62N00PR902478229

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45EP2ED/53L-VSC62N00P, material number R902478229. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with electrohydraulic pressure control U = 24 V (EP2ED). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite (62). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P).

Number
R902478229
Type code
AL A10V O45EP2ED/53L-VSC62N00P
Group
A10VO 45
Edition
06/2020

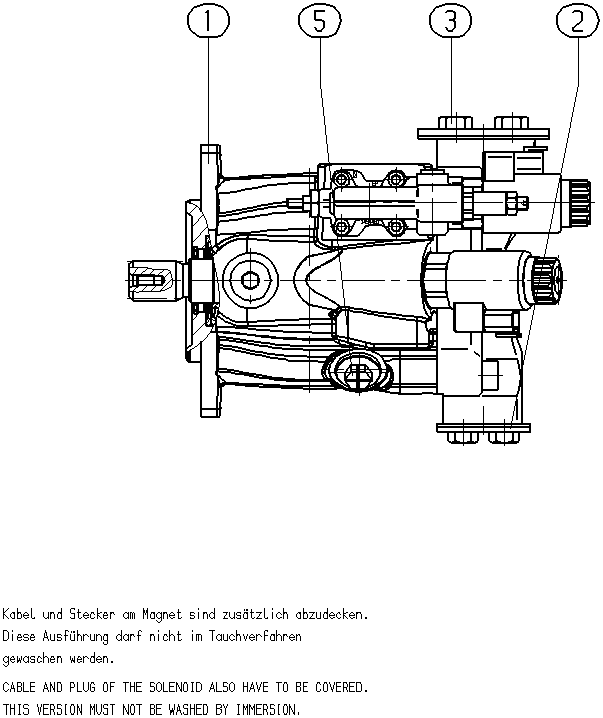

AL A10V O45EP2ED/53L-VSC62N00P — Drawing
Pos.NumberNameQtyAdd to inquiry
R902478228AXIAL-PISTON PUMP Assembly parts list →L1
R902400579FLANGE COVER1
R902400587FLANGE COVER1
R902603190SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)4545
Control devicewith electrohydraulic pressure control U = 24 VEP2ED
SeriesSeries 5, index 353
Direction of rotationViewed on drive shaft counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite62
Through driveWithout through driveN00
Connector for solenoidsDEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls)P

Other versions 3
