Unit · BASE UNIT
G A10V O 74 EP /32L-VSD46N00 -S2834R902478330
Base unit Bosch Rexroth series A10VO, type code GA10VO74EP/32L-VSD46N00-S2834, material number R902478330. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft counter-clockwise (L). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Through drive: without through drive (N00). Special version no. 2834.
- Number
- R902478330
- Type code
- G A10V O 74 EP /32L-VSD46N00 -S2834
- Group
- A10VO 74
- Edition
- 06/2020

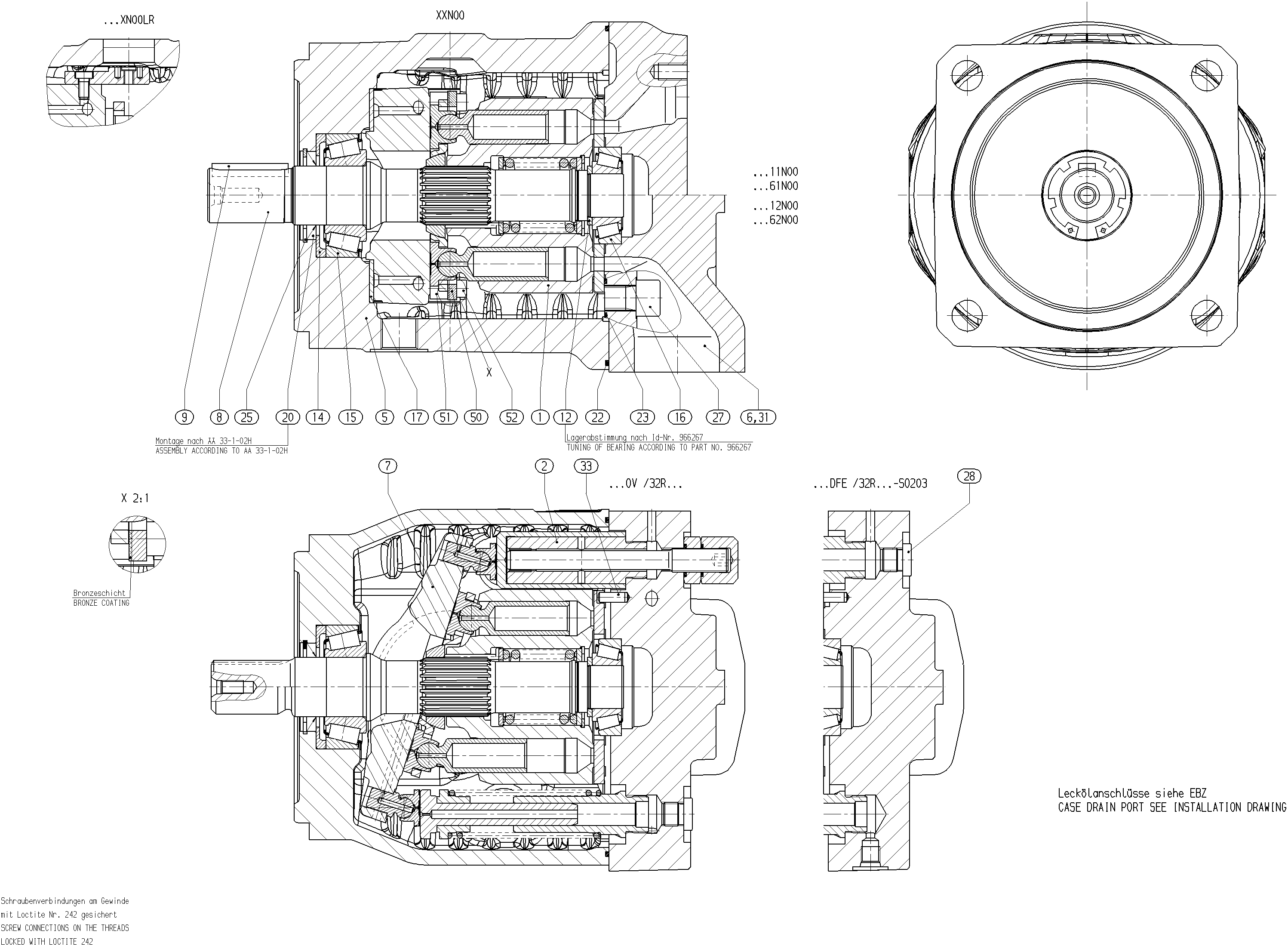

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902453933 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902519250 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910985292 | CHECK VALVE | 1 | ||
| R902477045 | PUMP HOUSING | 1 | ||
| R902478325 | CONNECTION PLATE | 1 | ||
| R902453897 | SWASH PLATE | 1 | ||
| R902453967 | DRIVE SHAFT | 1 | ||
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| R910987843 | STOP RING | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R910764728 | O-RINGD | 1 | ||
| R913052117 | R-RINGD | 4 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910110272 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902570107 | SEGMENT | 2 | ||
| R902451537 | SPACER SLEEVE | 4 | ||
| R902530616 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 74 | 74 |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft counter-clockwise | L |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Through drive | Without through drive | N00 |
