Unit · AXIAL-PISTON PUMP
A A10V O 74 DRS /32R-VSC12K52 -SO413R902478409
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO74DRS/32R-VSC12K52-SO413, material number R902478409. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: with flow controller X-T plugged with flushing function (DRS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on SAE B; 2-hole ISO 3019-1 (SAE) (C). Working port: at bottom, on opposite side, metric fastening thread (12). Through drive: 82-2 (A) 3/4 in 11T 16/32DP (K52). Special version no. 413.
- Number
- R902478409
- Type code
- A A10V O 74 DRS /32R-VSC12K52 -SO413
- Group
- A10VO 74
- Edition
- 06/2020

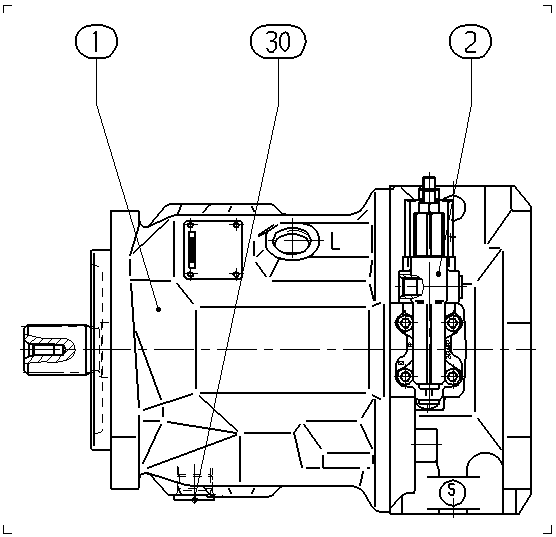

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902478428 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451608 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910967343 | SCREW PLUG | 1 | ||
| 34 | R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 74 | 74 |
| Control devices | with flow controller X-T plugged with flushing function | DRS |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on SAE B; 2-hole ISO 3019-1 (SAE) | C |
| Working port | at bottom, on opposite side, metric fastening thread | 12 |
| Through drive | 82-2 (A) 3/4 in 11T 16/32DP | K52 |
