Unit · AXIAL-PISTON PUMP

A A10VO71EF6LR/31R-VSC42N00P -SO511R902478667

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71EF6LR/31R-VSC42N00P-SO511, material number R902478667. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom (42). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Special version no. 511.

Number
R902478667
Type code
A A10VO71EF6LR/31R-VSC42N00P -SO511
Group
A10VO 71
Edition
06/2020

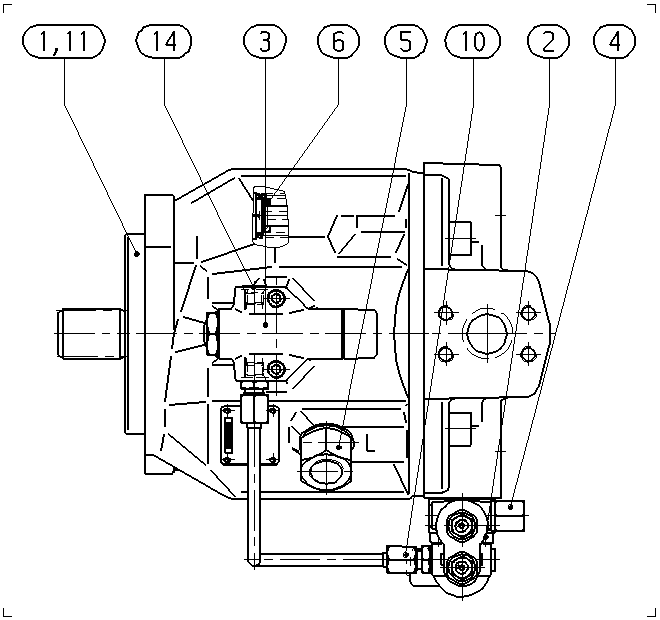

A A10VO71EF6LR/31R-VSC42N00P -SO511 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902474072BASE UNIT Assembly parts list →L1
R902479077CONTROL VALVE Assembly parts list →L1
R902533217CONTROL VALVE Assembly parts list →L1
R902409426ADAPTER Assembly parts list →L1
R910934572ADAPTER Assembly parts list →L1
R910918061SIDE MARKER RING1
R910963807PIPING Assembly parts list →L1
R902402084POWER DIAGRAM1
R910764647SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom42
Through driveWithout through driveN00
Connector for solenoidsDEUTSCH - molded connector, 2-pin, without suppressor diodeP
