Unit · AXIAL-PISTON PUMP
A A10VSO 10 DRG /52R-VKC64N00 -S1645R902478783
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO10DRG/52R-VKC64N00-S1645, material number R902478783. Nominal size: NG 10. Operating mode: pump, open circuit (O). Control device: with pressure cut-off hydraulic remote controlled (DRG). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Through drive: without through drive (N00). Special version no. 1645.
- Number
- R902478783
- Type code
- A A10VSO 10 DRG /52R-VKC64N00 -S1645
- Group
- A10VSO 10
- Edition
- 06/2020

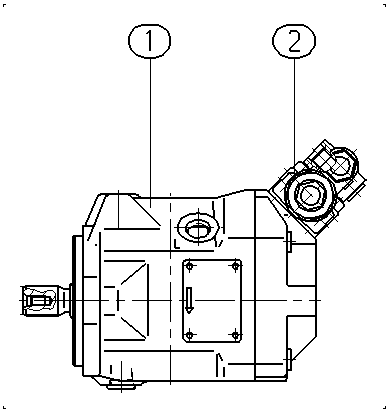

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902427896 | BASE UNIT Assembly parts list →L | 1 | ||
| R902455384 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 10 | 10 |
| Control device | with pressure cut-off hydraulic remote controlled | DRG |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Through drive | Without through drive | N00 |
