Unit · AXIAL-PISTON PUMP
A A10V O 63 DRG /53R-VSC11N00 -S2111R902478993
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO63DRG/53R-VSC11N00-S2111, material number R902478993. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure hydraulic remote cut-off controlled (DRG). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive (11). Through drive: without through drive (N00). Special version no. 2111.
- Number
- R902478993
- Type code
- A A10V O 63 DRG /53R-VSC11N00 -S2111
- Group
- A10VO 63
- Edition
- 06/2020

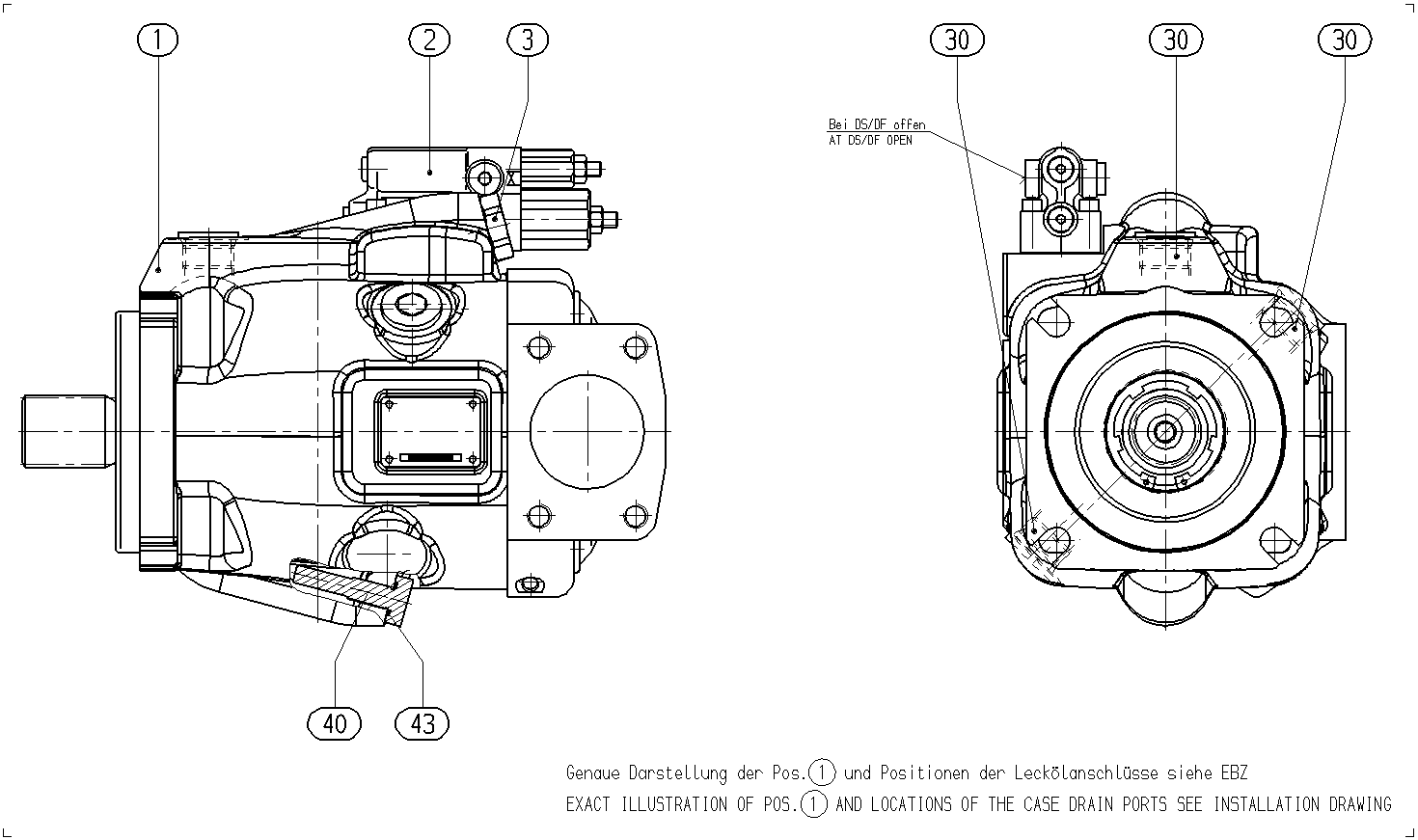

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902479150 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451761 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902471690 | CONTROL Assembly parts list →L | 1 | ||
| R910967343 | SCREW PLUG | 3 | ||
| R902427032 | STOP SCREW | 1 | ||
| R910804886 | O-RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 63 | 63 |
| Control device | with pressure hydraulic remote cut-off controlled | DRG |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive | 11 |
| Through drive | Without through drive | N00 |
