Unit · AXIAL-PISTON PUMP

AL A10V O 45ED 71 /52R-VSC11N00P -S2890R902479143

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45ED71/52R-VSC11N00P-S2890, material number R902479143. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: electric U = 12 V negative control (ED71). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive (11). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 2890.

Number
R902479143
Type code
AL A10V O 45ED 71 /52R-VSC11N00P -S2890
Group
A10VO 45
Edition
06/2020

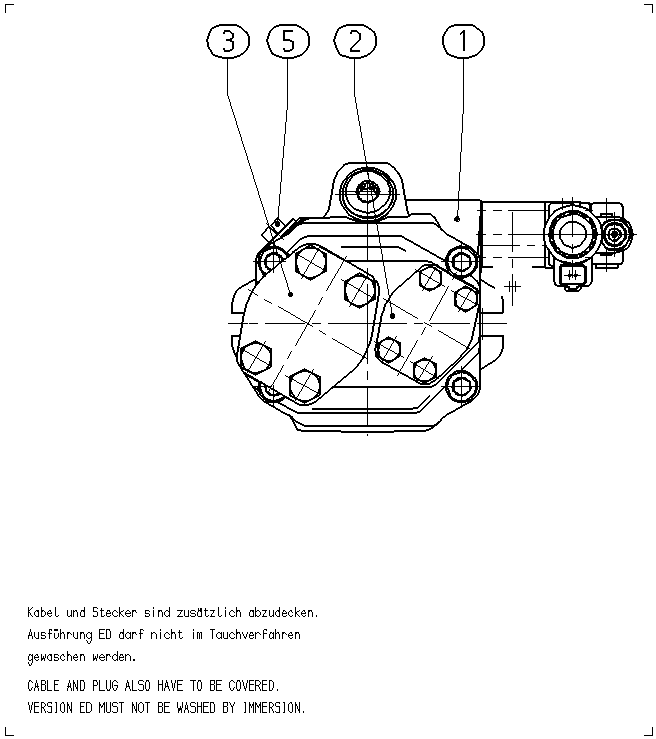

AL A10V O 45ED 71 /52R-VSC11N00P -S2890 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902479144AXIAL-PISTON PUMP Assembly parts list →L1
R902400578FLANGE COVER1
R902400586FLANGE COVER1
R902603190SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)4545
Control deviceelectric U = 12 V negative controlED71
SeriesSeries 5, index 252
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive11
Through driveWithout through driveN00
Connector for solenoidsDEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls)P

Other versions 9
