Unit · AXIAL-PISTON PUMP
A A10V O 74 DRS /32R-VSD12K07 -S2893R902479189
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO74DRS/32R-VSD12K07-S2893, material number R902479189. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: with flow controller X-T plugged with flushing function (DRS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: at bottom, on opposite side, metric fastening thread (12). Through drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07). Special version no. 2893.
- Number
- R902479189
- Type code
- A A10V O 74 DRS /32R-VSD12K07 -S2893
- Group
- A10VO 74
- Edition
- 06/2020

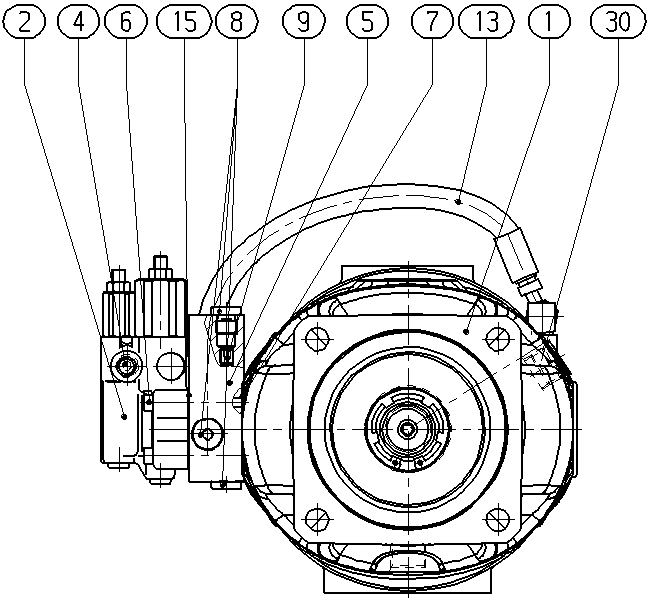

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902479157 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451555 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R910965980 | INTERMEDIATE PLATE | 1 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 4 | ||
| R910514497 | O-RING | 3 | ||
| R913011609 | SCREW PLUG | 3 | ||
| R910946752 | NOZZLE | 1 | ||
| R910972833 | HOSE ASSEMBLY Assembly parts list →L | 1 | ||
| R902434482 | SEAL | 1 | ||
| R910967343 | SCREW PLUG | 1 | ||
| 70 | R902421945 | SHIPPING PROTECTION | 1 | |
| 71 | R902421949 | SHIPPING PROTECTION | 1 | |
| 72 | R902603190 | SEAL SCREW | 1 | |
| 73 | R902602014 | SEAL SCREW | 1 | |
| 74 | R902602979 | FLANGE COVER | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 74 | 74 |
| Control devices | with flow controller X-T plugged with flushing function | DRS |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Working port | at bottom, on opposite side, metric fastening thread | 12 |
| Through drive | 127-2 (C) 1 1/4 in 14T 12/24DP | K07 |
