Unit · AXIAL-PISTON PUMP
A A10VSO100 FE1 /32R-VSD32U24 -S2881R902479574
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO100FE1/32R-VSD32U24-S2881, material number R902479574. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Port: SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping (32). Through drive: only for port plate 22 and 32, 127-2 (C) 1 1/2 in 17T12/24DP (U24). Rotary group version: high-speed with port plate version 22U (S).
- Number
- R902479574
- Type code
- A A10VSO100 FE1 /32R-VSD32U24 -S2881
- Group
- A10VSO 100
- Edition
- 06/2020

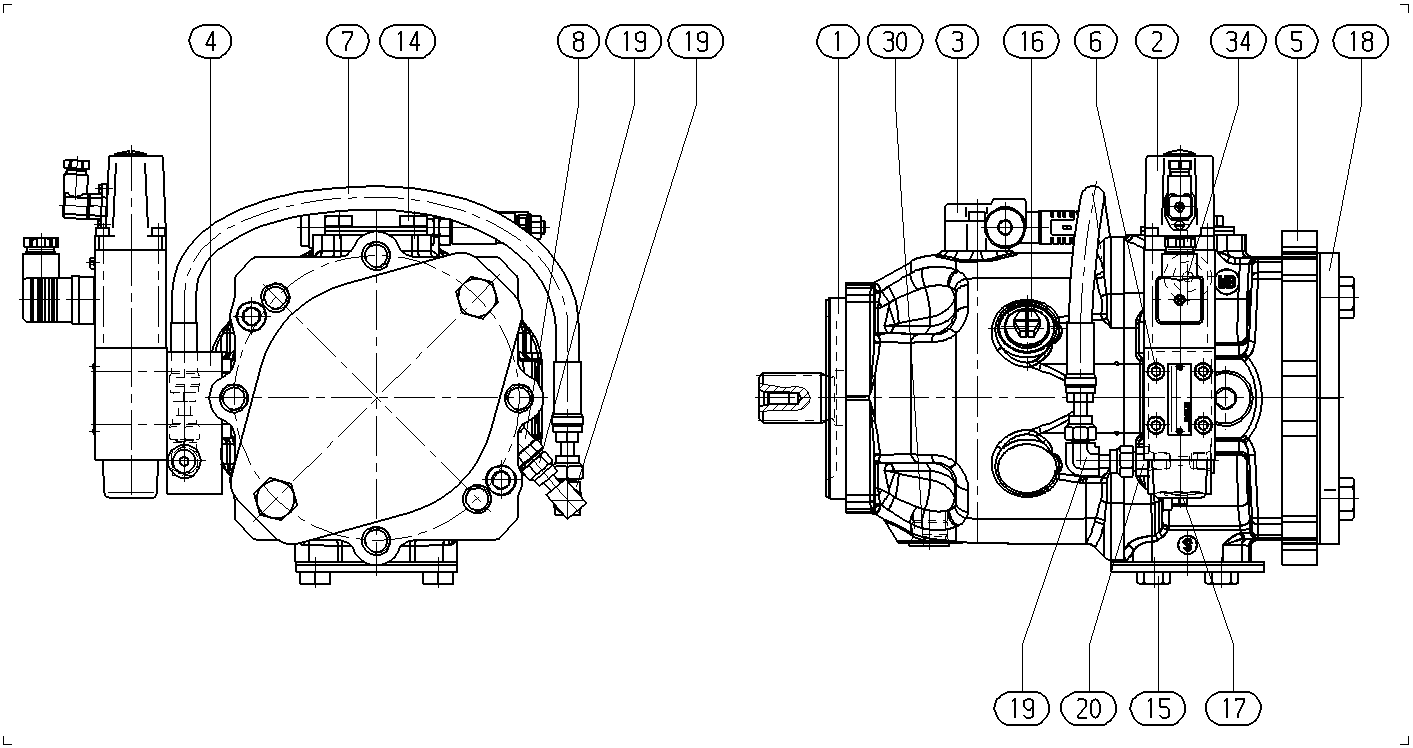

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902478774 | BASE UNIT Assembly parts list →L | 1 | ||
| R902424554 | PROPORTIONAL DIRECTIONAL VALVE Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902409295 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R902479709 | ATTACHMENT KIT | 1 | ||
| R910914728 | SOCKET HEAD CAP SCREW | 4 | ||
| R910995601 | HOSE | 1 | ||
| R902479050 | THREADED FASTENER Assembly parts list →L | 1 | ||
| R902400584 | FLANGE COVER | 1 | ||
| R902400594 | FLANGE COVER | 1 | ||
| R902603191 | SEAL SCREW | 1 | ||
| R909831377 | GUARD PLUG | 1 | ||
| R902602979 | FLANGE COVER | 1 | ||
| R910994933 | ELBOW UNION | 3 | ||
| R910994759 | MALE CONNECTOR | 1 | ||
| R910967351 | SCREW PLUG | 1 | ||
| R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Port | SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping | 32 |
| Through drive | Only for port plate 22 and 32, 127-2 (C) 1 1/2 in 17T12/24DP | U24 |
| Rotary group version | High-speed with port plate version 22U | S |
