Unit · AXIAL-PISTON PUMP
AL A10V O 71LA7DS /32R-VUD11N00 -S2900R902479577
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO71LA7DS/32R-VUD11N00-S2900, material number R902479577. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off from 91 to 160 bar, separate flow control hydraulic beginning of control.D (LA7DS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: according to ISO 6162 SAE flange ports at rear, metric fastening thread (not for through drive, "N00" only) (11). Through drive: without through drive (N00). Special version no. 2900.
- Number
- R902479577
- Type code
- AL A10V O 71LA7DS /32R-VUD11N00 -S2900
- Group
- A10VO 71
- Edition
- 06/2020

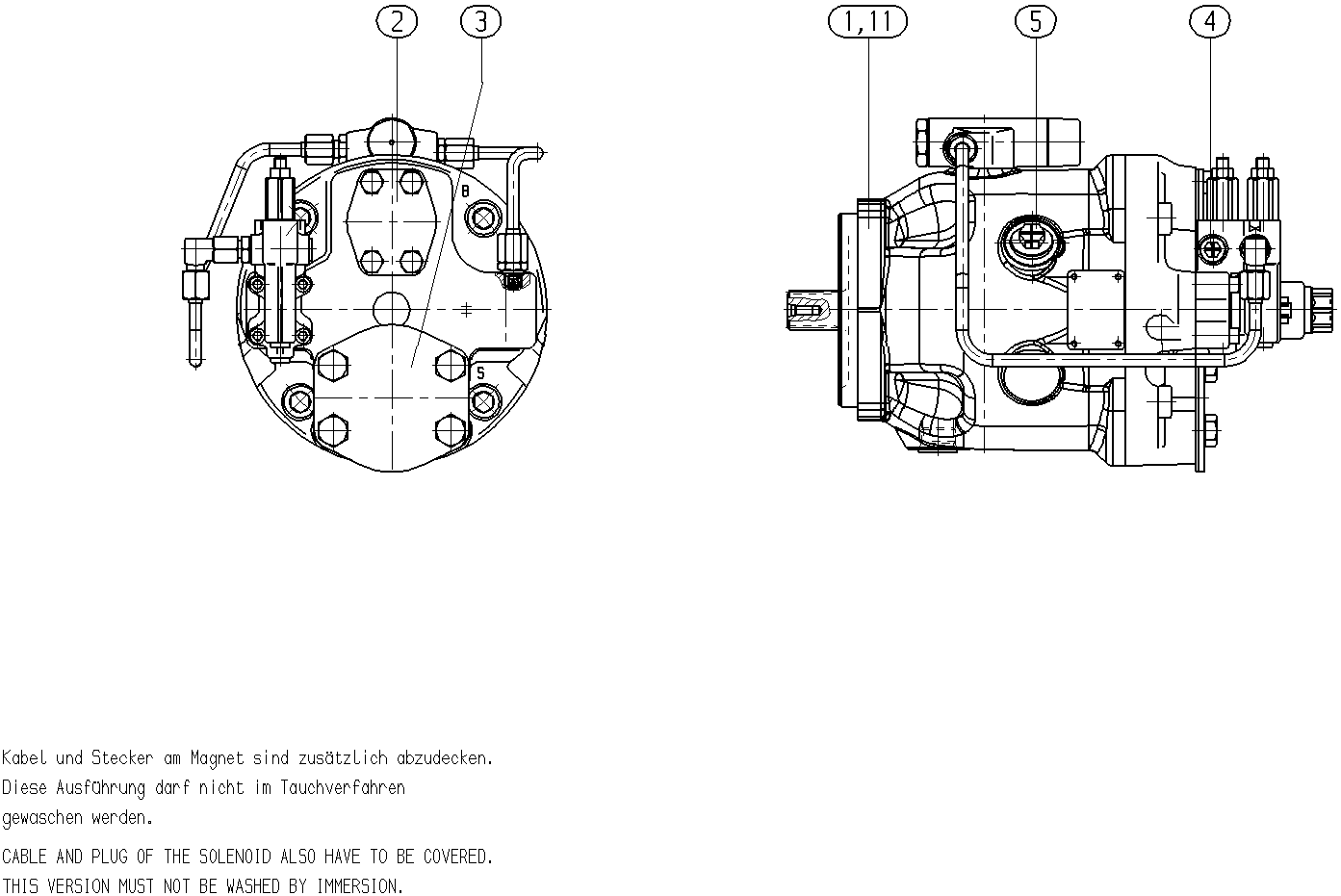

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902479758 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902400590 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603190 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 71 | 71 |
| Control devices | pressure cut-off from 91 to 160 bar, separate flow control hydraulic beginning of control.D | LA7DS |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Drive shaft | reduced diameter, limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Working port | according to ISO 6162 SAE flange ports at rear, metric fastening thread (not for through drive, "N00" only) | 11 |
| Through drive | Without through drive | N00 |
