Unit · AXIAL-PISTON PUMP
A A10VSO 18 DG /31R-VSC12N00 -S1179R902479708
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO18DG/31R-VSC12N00-S1179, material number R902479708. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: two-point control, direct operated (DG). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 1179.
- Number
- R902479708
- Type code
- A A10VSO 18 DG /31R-VSC12N00 -S1179
- Group
- A10VSO 18
- Edition
- 06/2020

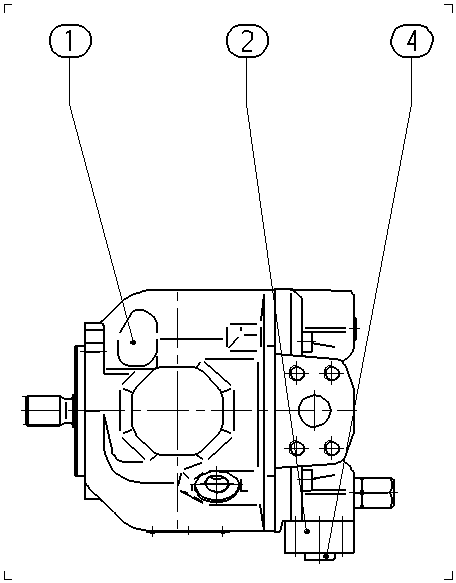

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910990974 | BASE UNIT Assembly parts list →L | 1 | ||
| R902570092 | PLATE Assembly parts list →L | 1 | ||
| R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Control device | Two-point control, direct operated | DG |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
