Unit · AXIAL-PISTON PUMP
A A10VSO 18 ER 2/31R-VSA12KB2HR902479716
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO18ER2/31R-VSA12KB2H, material number R902479716. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: for flange ISO 3019-2 Diameter, 80, 2-hole 3/4 in 11T 16/32DP (KB2). Connector for solenoids: HIRSCHMANN connector – without suppressor diode (H).
- Number
- R902479716
- Type code
- A A10VSO 18 ER 2/31R-VSA12KB2H
- Group
- A10VSO 18
- Edition
- 06/2020

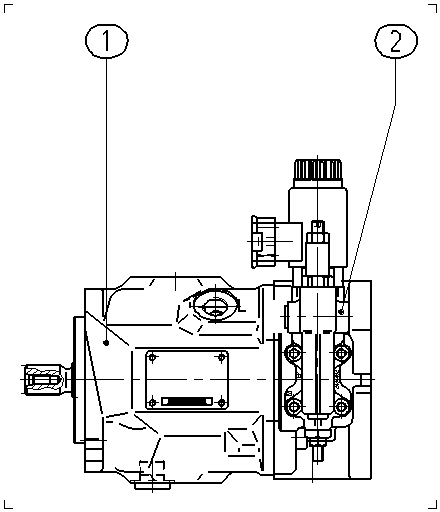

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902462127 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533520 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | For flange ISO 3019-2 Diameter, 80, 2-hole 3/4 in 11T 16/32DP | KB2 |
| Connector for solenoids | HIRSCHMANN connector – without suppressor diode | H |
