Unit · POMPA OSIOWO-TŁOKOWA
A A10VSO 18 DFR1/31R-VPA12K01 -SO 52R902480018
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO18DFR1/31R-VPA12K01-SO52, material number R902480018. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 52.
- Number
- R902480018
- Type code
- A A10VSO 18 DFR1/31R-VPA12K01 -SO 52
- Group
- A10VSO 18
- Edition
- 06/2020

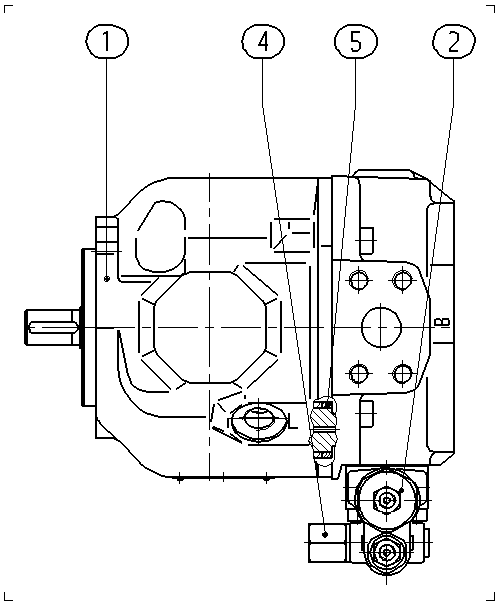

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910965053 | ZESPÓŁ PODSTAWY Assembly parts list →L | 1 | ||
| R902450439 | ZAWÓR REGULACYJNY Assembly parts list →L | 1 | ||
| R902409426 | ADAPTER Assembly parts list →L | 1 | ||
| R910969311 | PIERŚCIEŃ OGRANICZAJĄCY | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Control device | with flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
