Unit · AXIAL-PISTON PUMP
AL A10V O180 LA8DS /32R-VSD61N00 -S2918R902480086
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO180LA8DS/32R-VSD61N00-S2918, material number R902480086. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off from 161 to 240 bar, separate flow control hydraulic beginning of control.D (LA8DS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: (port plates and through drive assignment, at rear, UNC fastening thread (not for through drive, "N00" only) (61). Through drive: without through drive (N00). Special version no. 2918.
- Number
- R902480086
- Type code
- AL A10V O180 LA8DS /32R-VSD61N00 -S2918
- Group
- A10VO 180
- Edition
- 06/2020

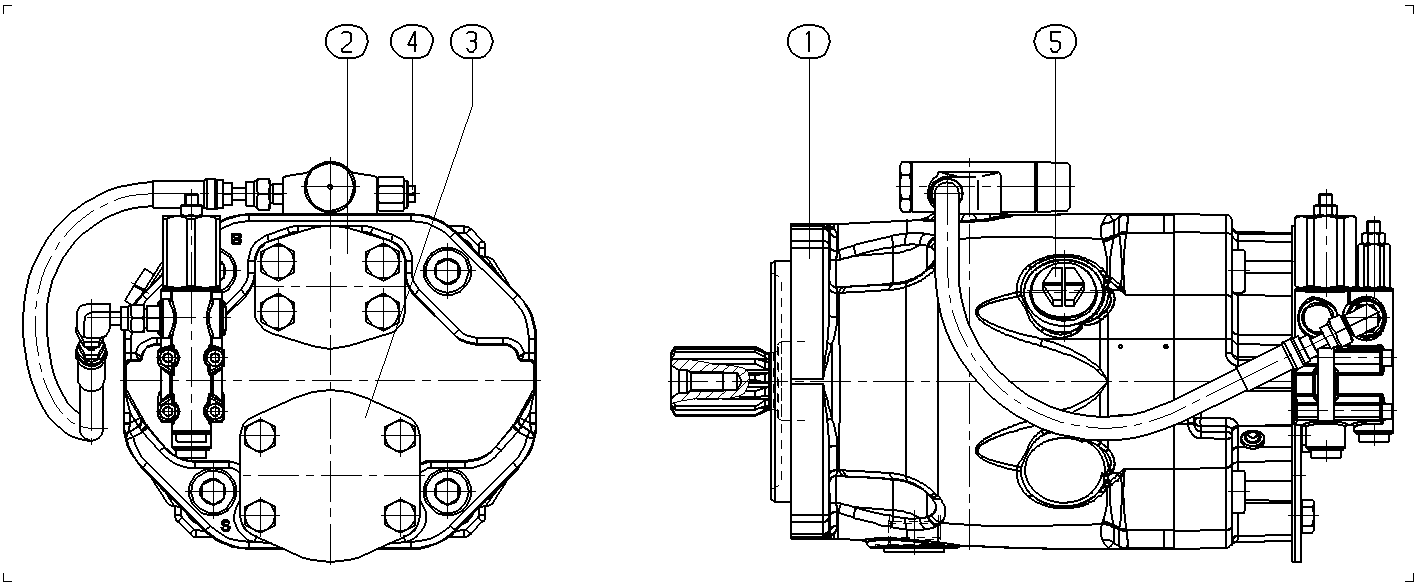

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902480085 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400585 | FLANGE COVER | 1 | ||
| R902400595 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603192 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 180 | 180 |
| Control devices | pressure cut-off from 161 to 240 bar, separate flow control hydraulic beginning of control.D | LA8DS |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Working port | (port plates and through drive assignment, at rear, UNC fastening thread (not for through drive, "N00" only) | 61 |
| Through drive | Without through drive | N00 |
