Unit · AXIAL-PISTON PUMP
ALA10VO85DRS/53R-VUC59N'980392*G*&R902480276
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO85DRS/53R-VUC59N'980392*G*&, material number R902480276. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DRS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C).
- Number
- R902480276
- Type code
- ALA10VO85DRS/53R-VUC59N'980392*G*&
- Group
- A10VO 85
- Edition
- 06/2020

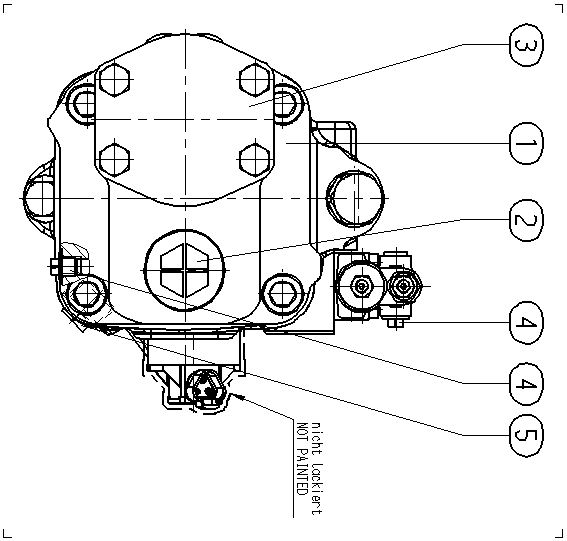

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902480277 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 2 | R902603193 | SEAL SCREW | 1 | |
| 3 | R902400595 | FLANGE COVER | 1 | |
| R902602014 | SEAL SCREW | 2 | ||
| 5 | R902603191 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 85 | 85 |
| Control device | with flow controller X-T plugged with flushing function | DRS |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | reduced diameter, limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
