Unit · AXIAL-PISTON PUMP
AL A10V O 18 DR /53L-VTE12N00 -SO584R902480301
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO18DR/53L-VTE12N00-SO584, material number R902480301. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: without through drive (N00). Special version no. 584.
- Number
- R902480301
- Type code
- AL A10V O 18 DR /53L-VTE12N00 -SO584
- Group
- A10VO 18
- Edition
- 06/2020

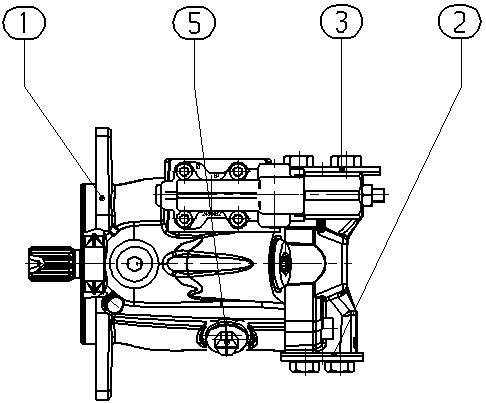

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902502707 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902480289 | FLANGE COVER | 1 | ||
| R902480292 | FLANGE COVER | 1 | ||
| R902602016 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | Without through drive | N00 |
