Unit · AXIAL-PISTON PUMP
A A10V O45EP2D /53R-VRC12K68P -S2862R902480371
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45EP2D/53R-VRC12K68P-S2862, material number R902480371. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure control U = 24 V (EP2D). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "S" however for higher torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 2862.
- Number
- R902480371
- Type code
- A A10V O45EP2D /53R-VRC12K68P -S2862
- Group
- A10VO 45
- Edition
- 06/2020

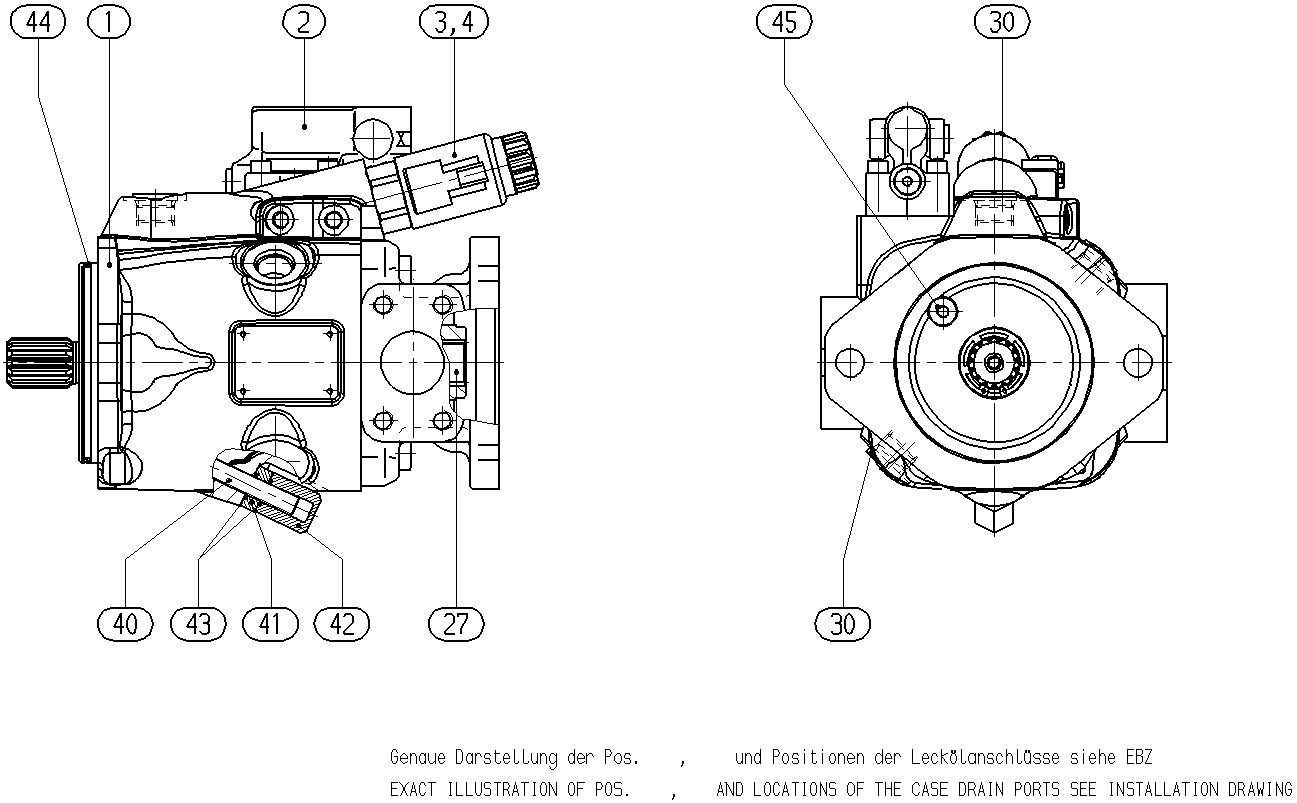

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902479149 | BASE UNIT Assembly parts list →L | 1 | ||
| R902453112 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902439082 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902438539 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902436084 | SPLINED COUPLING | 1 | ||
| R910967343 | SCREW PLUG | 2 | ||
| R910947854 | STOP SCREW | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910804886 | O-RING | 2 | ||
| R902651075 | O-RING | 1 | ||
| R909156649 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with pressure control U = 24 V | EP2D |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "S" however for higher torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
| Connector for solenoids | DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) | P |
