Unit · AXIAL-PISTON PUMP
AL A10VNO 28LA7D /53R-VTE12N00 -S2932R902480474
Axial piston pump Bosch Rexroth series A10VNO, type code ALA10VNO28LA7D/53R-VTE12N00-S2932, material number R902480474. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Working port: according to ISO 6162 laterally opposite for through drive (12). Through drive: without through drive (N00). Special version no. 2932.
- Number
- R902480474
- Type code
- AL A10VNO 28LA7D /53R-VTE12N00 -S2932
- Group
- A10VNO 28
- Edition
- 06/2020

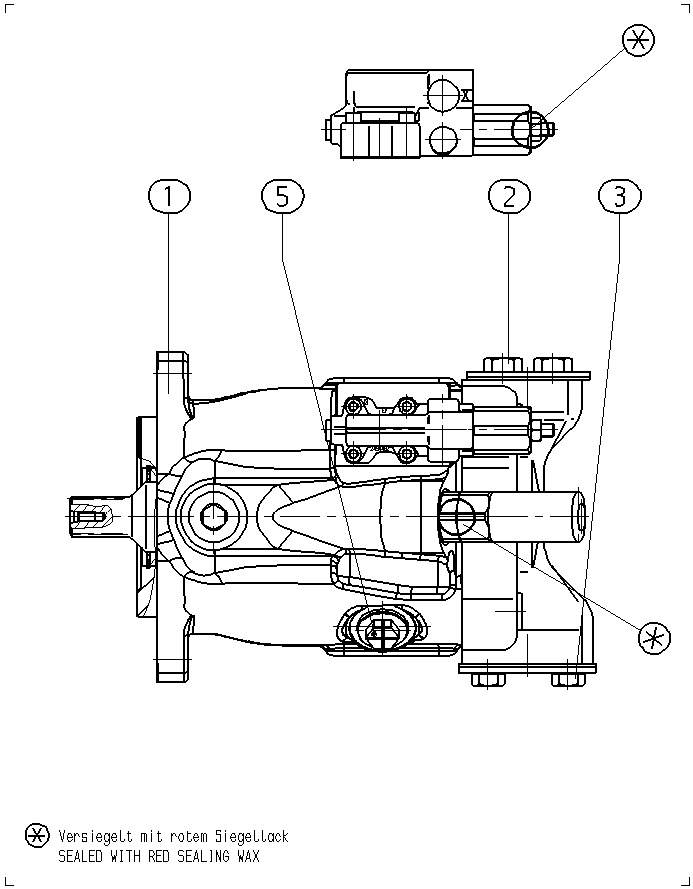

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902480475 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902480289 | FLANGE COVER | 1 | ||
| R902480292 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Working port | according to ISO 6162 laterally opposite for through drive | 12 |
| Through drive | Without through drive | N00 |
