Unit · AXIAL-PISTON PUMP

ALA10VO45EP1D/53R-VSC12N00P-S2895R902480700

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45EP1D/53R-VSC12N00P-S2895, material number R902480700. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure control U = 12 V (EP1D). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 2895.

Number
R902480700
Type code
ALA10VO45EP1D/53R-VSC12N00P-S2895
Group
A10VO 45
Edition
06/2020

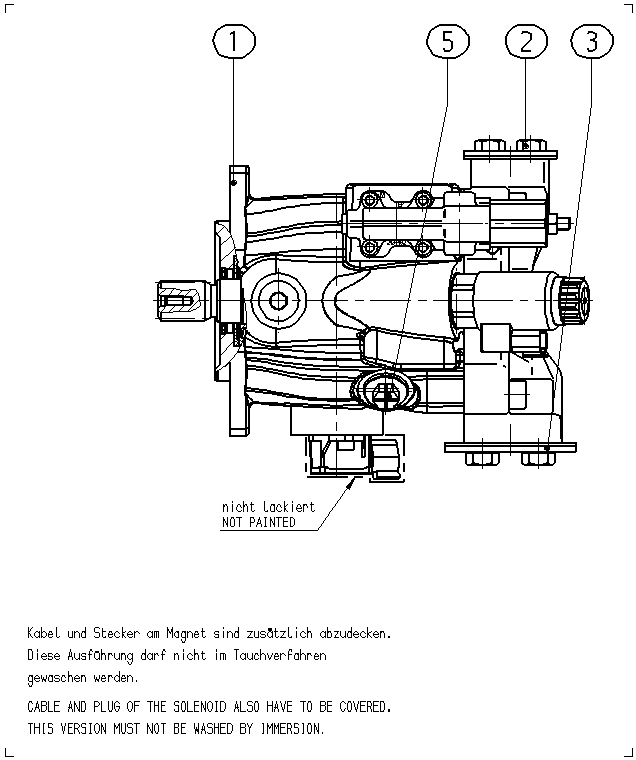

ALA10VO45EP1D/53R-VSC12N00P-S2895 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902480701AXIAL-PISTON PUMP Assembly parts list →L1
R902400578FLANGE COVER1
R902400586FLANGE COVER1
R902603190SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)4545
Control devicewith pressure control U = 12 VEP1D
SeriesSeries 5, index 353
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite12
Through driveWithout through driveN00
Connector for solenoidsDEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls)P

Other versions 5
