Unit · AXIAL-PISTON PUMP

AL A10VSO 28 DRG /31R-VPA12K01R902481012

Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO28DRG/31R-VPA12K01, material number R902481012. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with pressure cut-off hydraulic remote controlled (DRG). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01).

Number: R902481012
Type code: AL A10VSO 28 DRG /31R-VPA12K01
Group: A10VSO 28
Edition: 06/2020

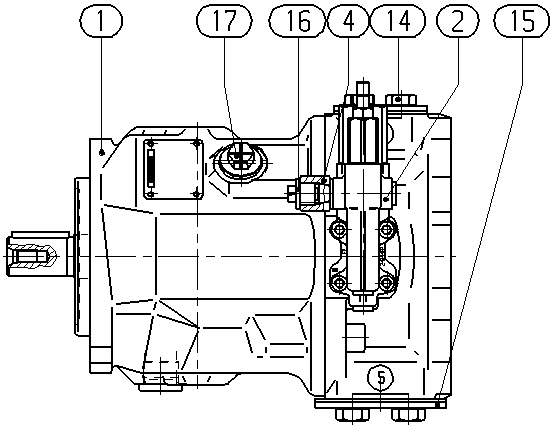

AL A10VSO 28 DRG /31R-VPA12K01 — Drawing

Number	Name	Qty
R910984182	BASE UNIT Assembly parts list →L	1
R902451761	CONTROL VALVE Assembly parts list →L	1
R902409426	ADAPTER Assembly parts list →L	1
R902400574	FLANGE COVER	1
R902400582	FLANGE COVER	1
R902602008	SEAL SCREW	1
R902602010	SEAL SCREW	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar	A10VS
Operating mode	Pump, open circuit	O
Size (NG)	28	28
Control device	with pressure cut-off hydraulic remote controlled	DRG
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Drive shaft	Parallel keyed shaft DIN 6885 permissible through-drive torque	P
Mounting flange	ISO 3019-2 2-hole	A
Working port	SAE flange ports according to ISO 6162, metric fastening thread laterally opposite	12
Through drive	82-2 (A) 5/8 in 9T 16/32DP	K01

Other versions 1

R902421254 A A10VSO 28 DRG /31R-VPA12K01
