Unit · AXIAL-PISTON PUMP
AL A10VSO 18 DR /31R-VPA12N00R902481015
Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO18DR/31R-VPA12N00, material number R902481015. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00).
- Number
- R902481015
- Type code
- AL A10VSO 18 DR /31R-VPA12N00
- Group
- A10VSO 18
- Edition
- 06/2020

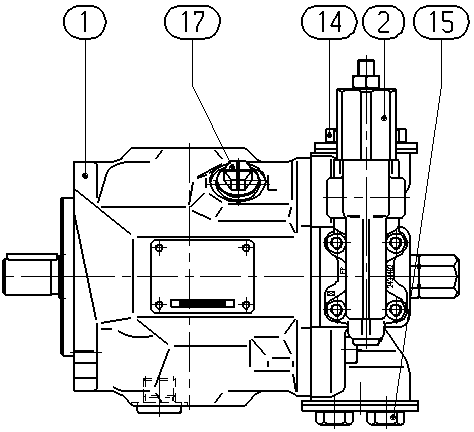

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910947278 | BASE UNIT Assembly parts list →L | 1 | ||
| R902453112 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902400574 | FLANGE COVER | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902602009 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
Other versions 14
- R902521442 A A10VSO 18 DR /31R-VPA12N00
- R902521474 A A10VSO 18 DR /31R-VPA12N00
- R902521485 A A10VSO 18 DR /31R-VPA12N00
- R902521488 A A10VSO 18 DR /31R-VPA12N00
- R910947277 A A10VSO 18 DR /31R-VPA12N00
- R902445903 A A10VSO 18 DR /31R-VPA12N00 -S1413
- R902505740 A A10VSO 18 DR /31R-VPA12N00 -S1413
- R902521428 A A10VSO 18 DR /31R-VPA12N00 -S1413
- R902473431 A A10VSO 18 DR /31R-VPA12N00 -S2709
- R902544804 A A10VSO 18 DR /31R-VPA12N00 -S2709
- R902574059 A A10VSO 18 DR /31R-VPA12N00 -S2709
- R902475902 A A10VSO 18 DR /31R-VPA12N00 -S2782
- R902560911 AL A10VSO 18 DR /31R-VPA12N00
- R902521957 AL A10VSO 18 DR /31R-VPA12N00 -S1413
