Unit · AXIAL-PISTON PUMP
A A10V O 63LA7DS/53R-VSC12N00 -S2652R902481608
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO63LA7DS/53R-VSC12N00-S2652, material number R902481608. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off from 91 to 160 bar, separate flow control hydraulic beginning of control.D (LA7DS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on SAE B; 2-hole ISO 3019-1 (SAE) (C). Working port: at bottom, on opposite side, metric fastening thread (12). Through drive: without through drive (N00). Special version no. 2652.
- Number
- R902481608
- Type code
- A A10V O 63LA7DS/53R-VSC12N00 -S2652
- Group
- A10VO 63
- Edition
- 06/2020

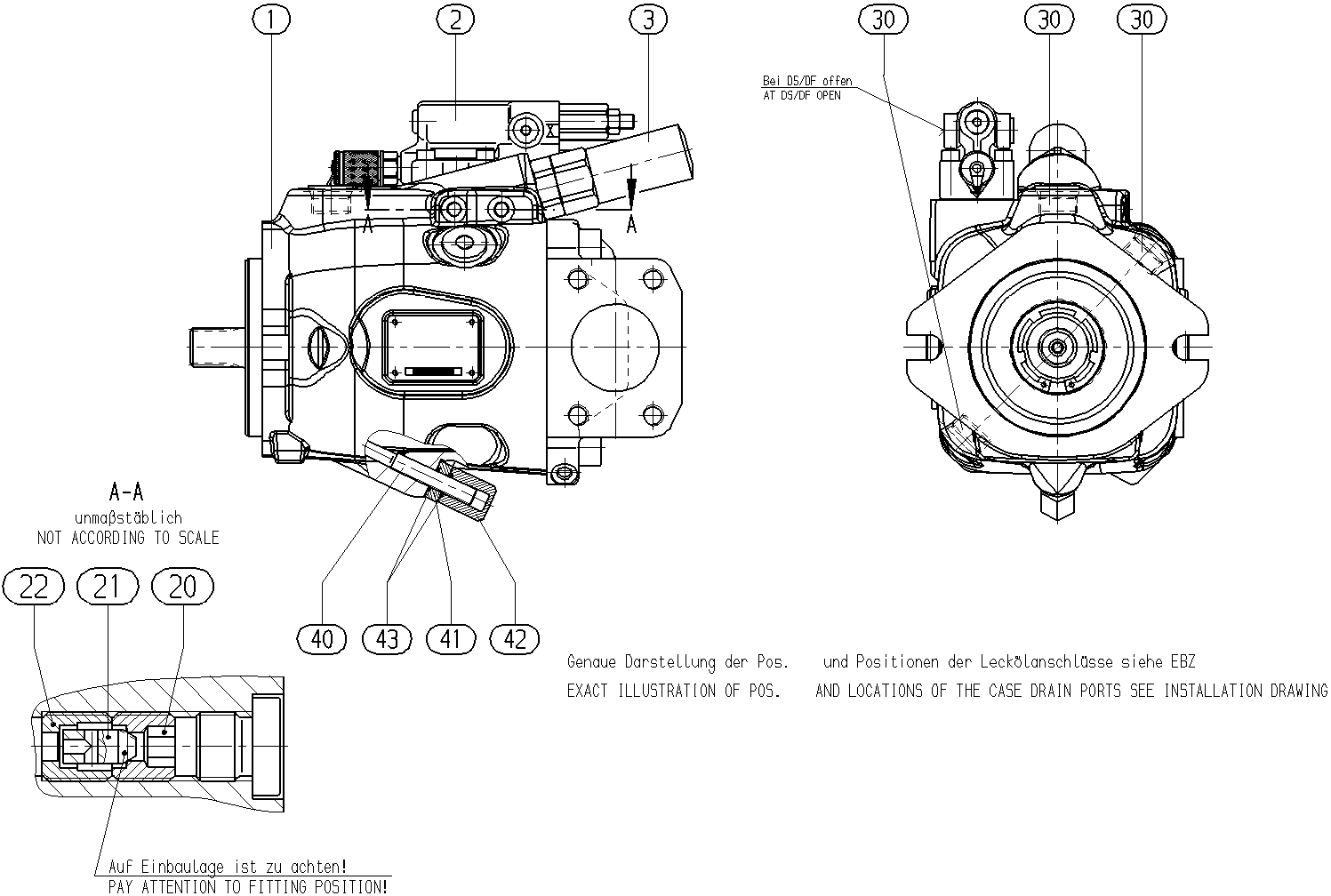

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902466237 | BASE UNIT Assembly parts list →L | 1 | ||
| R902460499 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902469715 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R909425870 | THROTTLE PIN | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R910967343 | SCREW PLUG | 3 | ||
| R910947854 | STOP SCREW | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910804886 | O-RING | 2 | ||
| 70 | R902421945 | SHIPPING PROTECTION | 1 | |
| 71 | R902421949 | SHIPPING PROTECTION | 1 | |
| 73 | R902602014 | SEAL SCREW | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 63 | 63 |
| Control devices | pressure cut-off from 91 to 160 bar, separate flow control hydraulic beginning of control.D | LA7DS |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on SAE B; 2-hole ISO 3019-1 (SAE) | C |
| Working port | at bottom, on opposite side, metric fastening thread | 12 |
| Through drive | Without through drive | N00 |
Other versions 9
- R902568021 A A10V O 63LA7DS/53R-VSC12N00
- R902534316 A A10V O 63LA7DS/53R-VSC12N00 -S4250
- R902481667 AL A10V O 63LA7DS/53R-VSC12N00 -S2652
- R902534315 AL A10V O 63LA7DS/53R-VSC12N00 -S4250
- R902544629 AL A10V O 63LA7DS/53R-VSC12N00 -S4679
- R902520937 AL A10V O 63LA7DS/53R-VSC12N00 -S4714
- R902562967 AL A10V O 63LA7DS/53R-VSC12N00 -S4714
- R902566727 AL A10V O 63LA7DS/53R-VSC12N00 -S4714
- R902562966 AL A10V O 63LA7DS/53R-VSC12N00 -S5287
