Unit · AXIAL-PISTON MOTOR
A A10V M 63 EZ6 /52W1-VWC60N000PR902481614
Axial piston motor Bosch Rexroth series A10VM, type code AA10VM63EZ6/52W1-VWC60N000P, material number R902481614. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Control devices: two-point control electric with U = 12 V switching solenoid orifice with (EZ6). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for reduced torque (W). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: flange ports according to A and B laterally, Fastening thread UNF ISO 6162 same side (60N00). Valves: without valve (0). Connector for solenoids: DEUTSCH - molded connector, 2-pin – without suppressor diode (P).
- Number
- R902481614
- Type code
- A A10V M 63 EZ6 /52W1-VWC60N000P
- Group
- A10VM 63
- Edition
- 06/2020

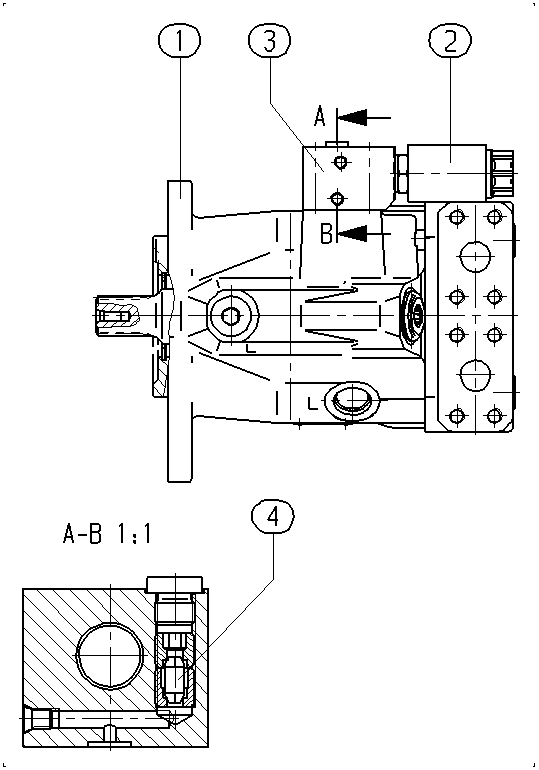

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910998196 | BASE UNIT Assembly parts list →L | 1 | ||
| R902650409 | DIRECTIONAL-CONTROL VALVE | 1 | ||
| R902420210 | VALVE HOUSING Assembly parts list →L | 1 | ||
| 70 | R902805707 | SHIPPING PROTECTION | 2 | |
| 72 | R902603190 | SEAL SCREW | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 63 | 63 |
| Control devices | Two-point control electric with U = 12 V switching solenoid orifice with | EZ6 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 for reduced torque | W |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Working port | Flange ports according to A and B laterally, Fastening thread UNF ISO 6162 same side | 60N00 |
| Valves | Without valve | 0 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin – without suppressor diode | P |
