Unit · AXIAL-PISTON PUMP

A A10V O 71 DFLR/31R-VSC42K01 -S2958R902481706

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFLR/31R-VSC42K01-S2958, material number R902481706. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom (42). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 2958.

Number
R902481706
Type code
A A10V O 71 DFLR/31R-VSC42K01 -S2958
Group
A10VO 71
Edition
06/2020

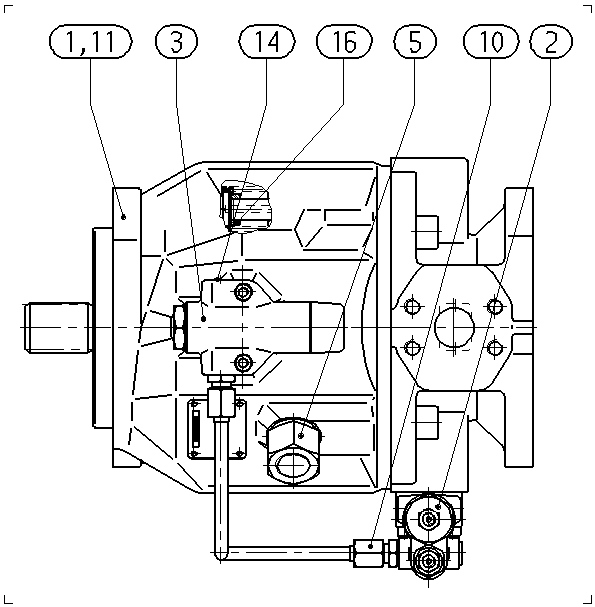

A A10V O 71 DFLR/31R-VSC42K01 -S2958 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902432122BASE UNIT Assembly parts list →L1
R902451761CONTROL VALVE Assembly parts list →L1
R902533217CONTROL VALVE Assembly parts list →L1
R910792772ADAPTER Assembly parts list →L1
R910963807PIPING Assembly parts list →L1
R910909315POWER DIAGRAM1
R909154478SCREW PLUG1
R910918066SIDE MARKER RING1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7171
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom42
Through drive82-2 (A) 5/8 in 9T 16/32DPK01

Other versions 16
