Unit · BASE UNIT
G A10V O 63 EK1DS/53L-VSD -S2864R902481858
Base unit Bosch Rexroth series A10VO, type code GA10VO63EK1DS/53L-VSD-S2864, material number R902481858. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure and flow control with U = 12 V controller cut-off (load sensing) X-T plugged (EK1DS). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D).
- Number
- R902481858
- Type code
- G A10V O 63 EK1DS/53L-VSD -S2864
- Group
- A10VO 63
- Edition
- 06/2020

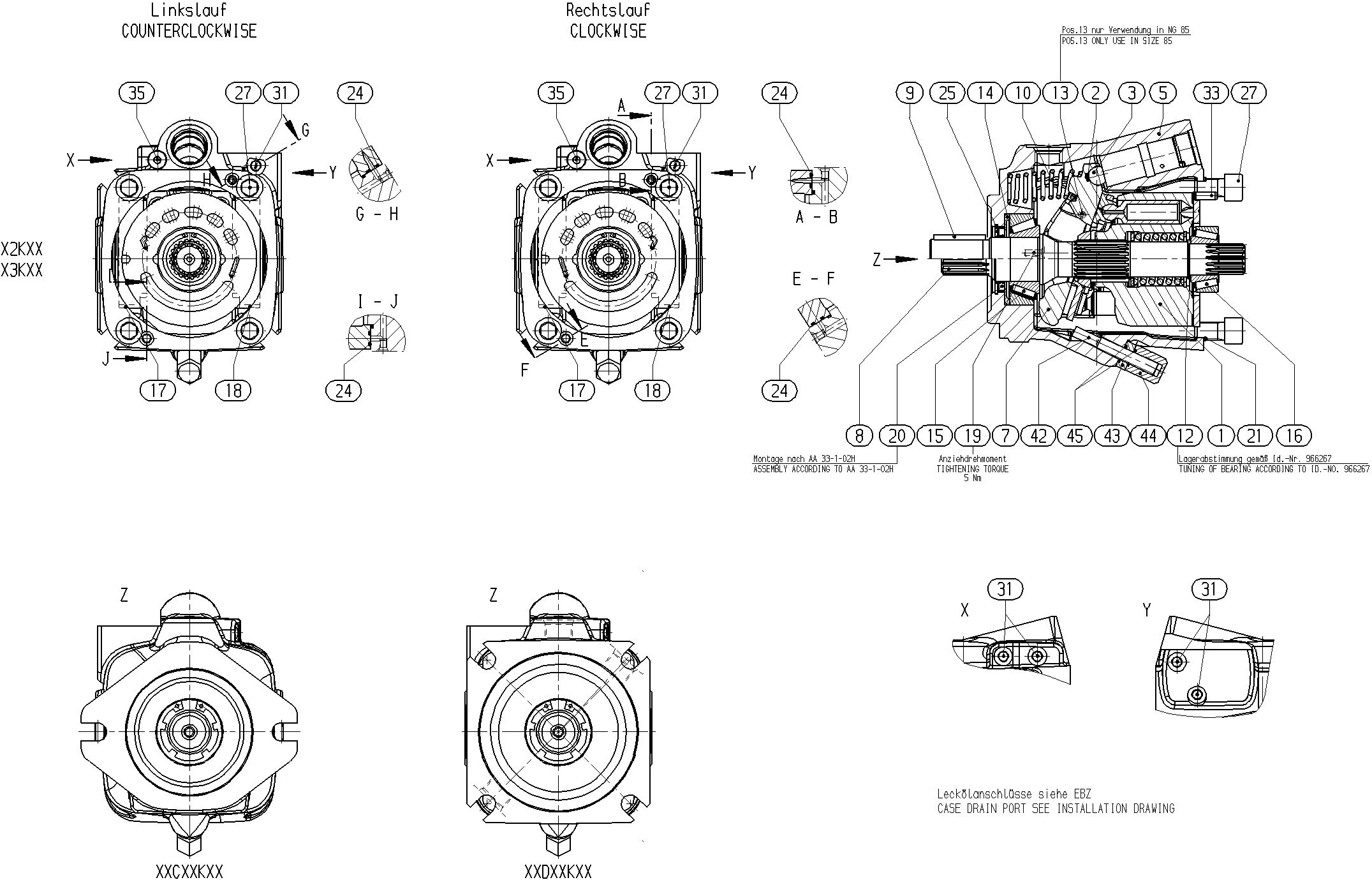

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902454129 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902473753 | COMPRESSION SPRING | 1 | ||
| R910984014 | BALL STOP | 1 | ||
| R902444409 | PUMP HOUSING | 1 | ||
| R902429370 | SWASH PLATE | 1 | ||
| R910994407 | DRIVE SHAFT | 1 | ||
| R902422349 | COMPRESSION SPRING | 1 | ||
| R910966528 | ADJUSTMENT SHIM | 1 | ||
| R910989235 | STOP RING | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910973501 | TAPERED-ROLLER BEARING | 1 | ||
| R902424620 | BEARING SHELL | 1 | ||
| R902424619 | BEARING SHELL | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R902427032 | STOP SCREW | 1 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R913050498 | O-RINGD | 1 | ||
| R910942133 | R-RINGD | 2 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910402303 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R909156649 | SCREW PLUG | 1 | ||
| 40 | R910967343 | SCREW PLUG | 2 | |
| 41 | R910804886 | O-RING | 1 | |
| R902423055 | STOP SCREW | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R902450439 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910804886 | O-RING | 2 | ||
| 46 | R902438427 | CONTROL VALVE Assembly parts list →L | 1 | |
| 47 | R902438532 | ADJUSTING PIECE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 63 | 63 |
| Control device | pressure and flow control with U = 12 V controller cut-off (load sensing) X-T plugged | EK1DS |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 4-hole | D |
