Unit · AXIAL-PISTON PUMP

AL A10VSO 18 DR /31L-VSC12N00R902481902

Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO18DR/31L-VSC12N00, material number R902481902. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00).

Number
R902481902
Type code
AL A10VSO 18 DR /31L-VSC12N00
Group
A10VSO 18
Edition
06/2020

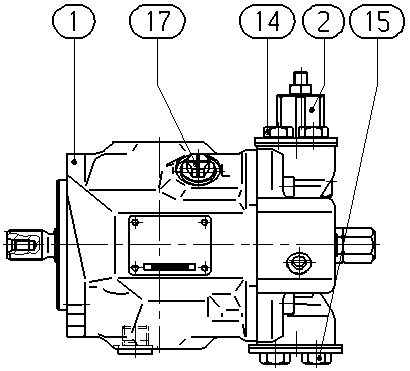

AL A10VSO 18 DR /31L-VSC12N00 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910991014BASE UNIT Assembly parts list →L1
R902453112CONTROL VALVE Assembly parts list →L1
R902400574FLANGE COVER1
R902400587FLANGE COVER1
R902602009SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)1818
Control devicePressure controller hydraulicDR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftSplined shaft standard shaft ISO 3019-1S
Working portSAE flange ports according to ISO 6162, metric fastening thread laterally opposite12
Through driveWithout through driveN00
