Unit · AXIAL-PISTON PUMP
ALA10VO63DRG/53R-VSC62N'980392*G*&R902482071
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO63DRG/53R-VSC62N'980392*G*&, material number R902482071. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure hydraulic remote cut-off controlled (DRG). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite (62).
- Number
- R902482071
- Type code
- ALA10VO63DRG/53R-VSC62N'980392*G*&
- Group
- A10VO 63
- Edition
- 06/2020

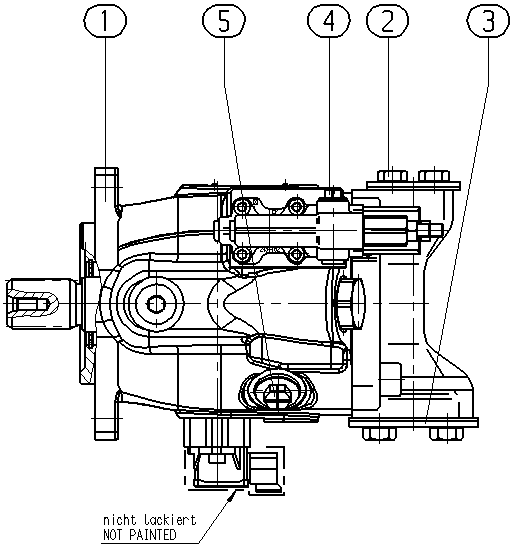

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902482070 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400579 | FLANGE COVER | 1 | ||
| R902428740 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603190 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 63 | 63 |
| Control device | with pressure hydraulic remote cut-off controlled | DRG |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite | 62 |
