Unit · AXIAL-PISTON PUMP
A A10VSO 28 DR /31R-VPA12N00 -S2832R902482314
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO28DR/31R-VPA12N00-S2832, material number R902482314. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 2832.
- Number
- R902482314
- Type code
- A A10VSO 28 DR /31R-VPA12N00 -S2832
- Group
- A10VSO 28
- Edition
- 06/2020

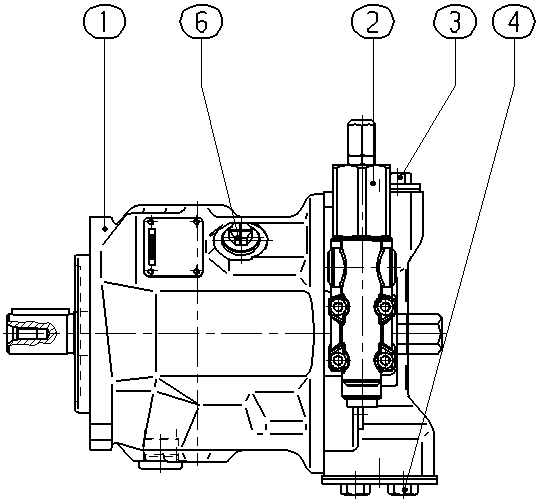

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910907362 | BASE UNIT Assembly parts list →L | 1 | ||
| R902482106 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902400582 | FLANGE COVER | 1 | ||
| R902602010 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
Other versions 21
- R902521419 A A10VSO 28 DR /31R-VPA12N00
- R902544817 A A10VSO 28 DR /31R-VPA12N00
- R902546026 A A10VSO 28 DR /31R-VPA12N00
- R902551868 A A10VSO 28 DR /31R-VPA12N00
- R902560890 A A10VSO 28 DR /31R-VPA12N00
- R902561253 A A10VSO 28 DR /31R-VPA12N00
- R902561637 A A10VSO 28 DR /31R-VPA12N00
- R902573067 A A10VSO 28 DR /31R-VPA12N00
- R902574488 A A10VSO 28 DR /31R-VPA12N00
- R910907369 A A10VSO 28 DR /31R-VPA12N00
- R902542733 A A10VSO 28 DR /31R-VPA12N00 -S2709
- R902574062 A A10VSO 28 DR /31R-VPA12N00 -S2709
- R902554952 A A10VSO 28 DR /31R-VPA12N00 -SO 13
- R902573886 A A10VSO 28 DR /31R-VPA12N00 -SO 13
- R902537811 A A10VSO 28 DR /31R-VPA12N00 -SO155
- R910984627 A A10VSO 28 DR /31R-VPA12N00 -SO169
- R902477493 A A10VSO 28 DR /31R-VPA12N00 -SO275
- R902485393 AL A10VSO 28 DR /31R-VPA12N00
- R902561295 AL A10VSO 28 DR /31R-VPA12N00
- R902562988 AL A10VSO 28 DR /31R-VPA12N00
- R902562993 AL A10VSO 28 DR /31R-VPA12N00
