Unit · AXIAL-PISTON PUMP
AL A10VNO 45 DRS /52R-VCC64N00 -S3245R902482583
Axial piston pump Bosch Rexroth series A10VNO, type code ALA10VNO45DRS/52R-VCC64N00-S3245, material number R902482583. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DRS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: without through drive (N00). Special version no. 3245.
- Number
- R902482583
- Type code
- AL A10VNO 45 DRS /52R-VCC64N00 -S3245
- Group
- A10VNO 45
- Edition
- 06/2020

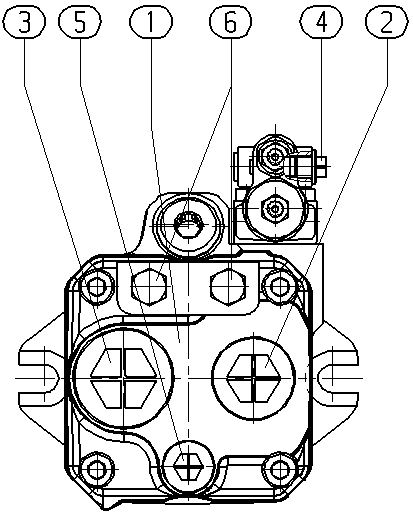

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902482582 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902603192 | SEAL SCREW | 1 | ||
| R902603193 | SEAL SCREW | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902602016 | SEAL SCREW | 1 | ||
| R910968868 | HEXAGON SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with flow controller X-T plugged with flushing function | DRS |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | 64 | 64 |
| Through drive | Without through drive | N00 |
