Unit · AXIAL-PISTON PUMP

A A10V O180 LA6DS/32R-VSD72U99R902482817

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO180LA6DS/32R-VSD72U99, material number R902482817. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off from 51 to 90 bar, separate flow control hydraulic beginning of control.D (LA6DS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D).

Number
R902482817
Type code
A A10V O180 LA6DS/32R-VSD72U99
Group
A10VO 180
Edition
06/2020

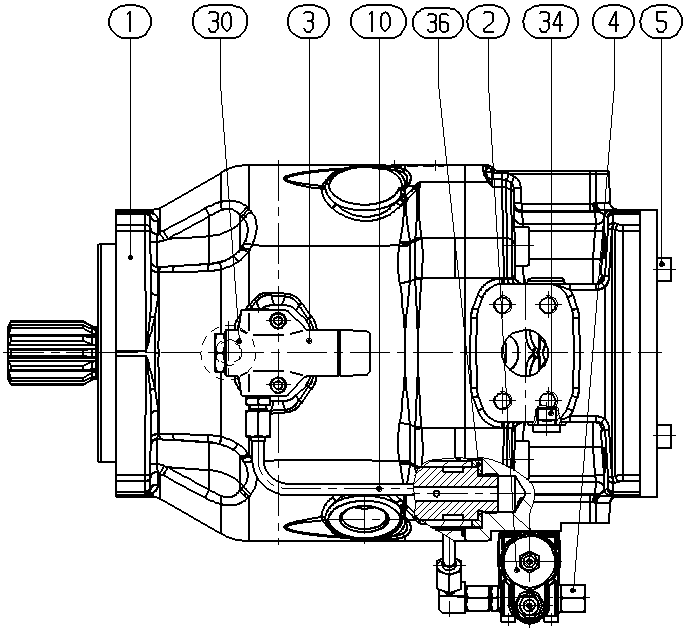

A A10V O180 LA6DS/32R-VSD72U99 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902451814BASE UNIT Assembly parts list →L1
R902466301CONTROL VALVE Assembly parts list →L1
R902533219CONTROL VALVE Assembly parts list →L1
R910932938ADAPTER Assembly parts list →L1
R902444736COVER Assembly parts list →L1
R902476946PIPING Assembly parts list →L1
R902601857SCREW PLUG1
R913011609SCREW PLUG1
R902454278WASHER1
70R902421947SHIPPING PROTECTION1
71R902421950SHIPPING PROTECTION1
72R902603192SEAL SCREW1
73R902602014SEAL SCREW1
75R909830326NAMEPLATE1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 barA10V
Operating modePump, open circuitO
Sizes (NG)180180
Control devicespressure cut-off from 51 to 90 bar, separate flow control hydraulic beginning of control.DLA6DS
SeriesSeries 3, index 232
Directions of rotationViewed on drive shaft clockwiseR
SealFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) SAE C; 4-holeD
