Unit · AXIAL-PISTON PUMP

AL A10V O63LA8DS/53L-VSD12H00 -S2687R902483195

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO63LA8DS/53L-VSD12H00-S2687, material number R902483195. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off from 161 to 240 bar, separate flow control hydraulic beginning of control.D (LA8DS). Directions of rotation: viewed on drive shaft counter-clockwise (L). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: at bottom, on opposite side, metric fastening thread (12). Special version no. 2687.

Number: R902483195
Type code: AL A10V O63LA8DS/53L-VSD12H00 -S2687
Group: A10VO 63
Edition: 06/2020

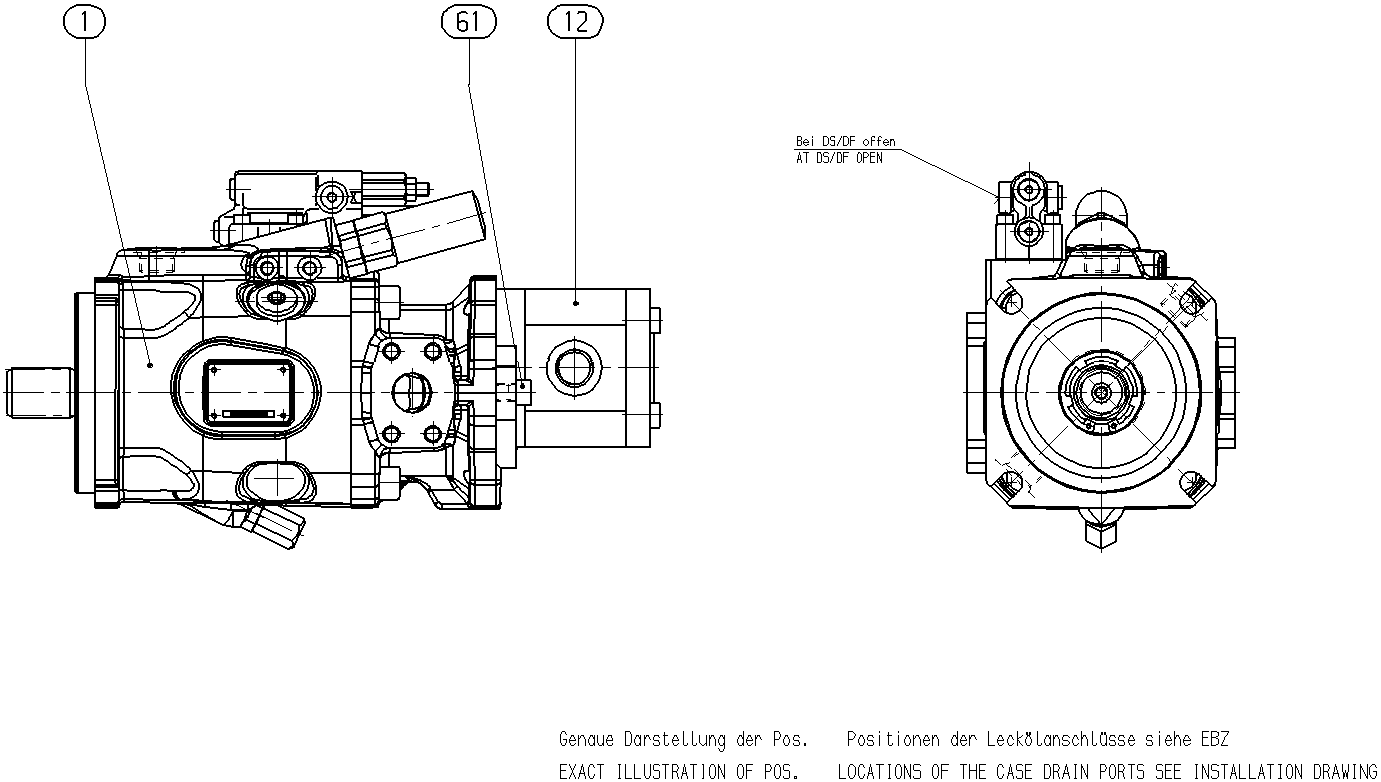

AL A10V O63LA8DS/53L-VSD12H00 -S2687 — Drawing

Pos.	Number	Name	Qty
	R902469730	BASE UNIT Assembly parts list →L	1
2	R902450439	CONTROL VALVE Assembly parts list →L	1
3	R902469597	CONTROL VALVE Assembly parts list →L	1
	0510625385	HYDRAULIC GEAR PUMPL	1
27	R910943545	SPLINED COUPLING	1
30	R910967343	SCREW PLUG	2
40	R910947854	STOP SCREW	1
41	R910998240	NUT	1
42	R910961839	CAP NUT	1
43	R910804886	O-RING	2
	R910109606	SOCKET HEAD CAP SCREW	2

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar	A10V
Operating mode	Pump, open circuit	O
Sizes (NG)	63	63
Control devices	pressure cut-off from 161 to 240 bar, separate flow control hydraulic beginning of control.D	LA8DS
Directions of rotation	Viewed on drive shaft counter-clockwise	L
Seal	FKM (fluorocarbon rubber)	V
Mounting flange	Based on ISO 3019-1 (SAE) SAE C; 4-hole	D
Working port	at bottom, on opposite side, metric fastening thread	12

Parameters from the type code
