Unit · AXIAL-PISTON PUMP
A A10V O 74 DFSR/31R-VSC92K68 -S1321R902483240
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO74DFSR/31R-VSC92K68-S1321, material number R902483240. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom (92). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 1321.
- Number
- R902483240
- Type code
- A A10V O 74 DFSR/31R-VSC92K68 -S1321
- Group
- A10VO 74
- Edition
- 06/2020

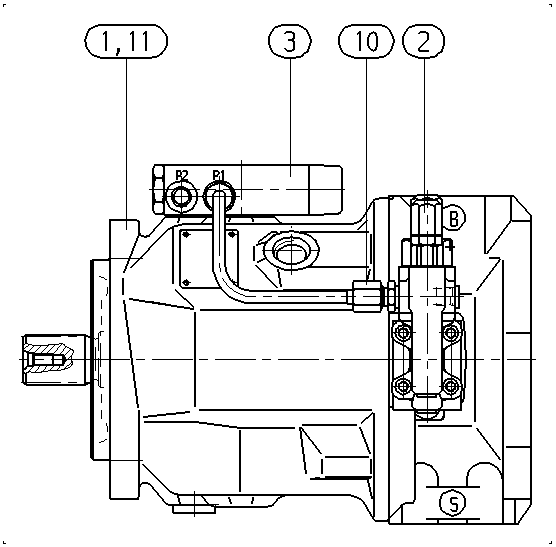

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902483241 | BASE UNIT Assembly parts list →L | 1 | ||
| R902535525 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533227 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910963807 | PIPING Assembly parts list →L | 1 | ||
| R902483185 | POWER DIAGRAM | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 74 | 74 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom | 92 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
