Unit · AXIAL-PISTON PUMP
A A10V O 74 DFLR/31R-VSC42K04 -S3037R902483269
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO74DFLR/31R-VSC42K04-S3037, material number R902483269. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom (42). Through drive: 101-2 (B) 1 in 15T 16/32DP (K04). Special version no. 3037.
- Number
- R902483269
- Type code
- A A10V O 74 DFLR/31R-VSC42K04 -S3037
- Group
- A10VO 74
- Edition
- 06/2020

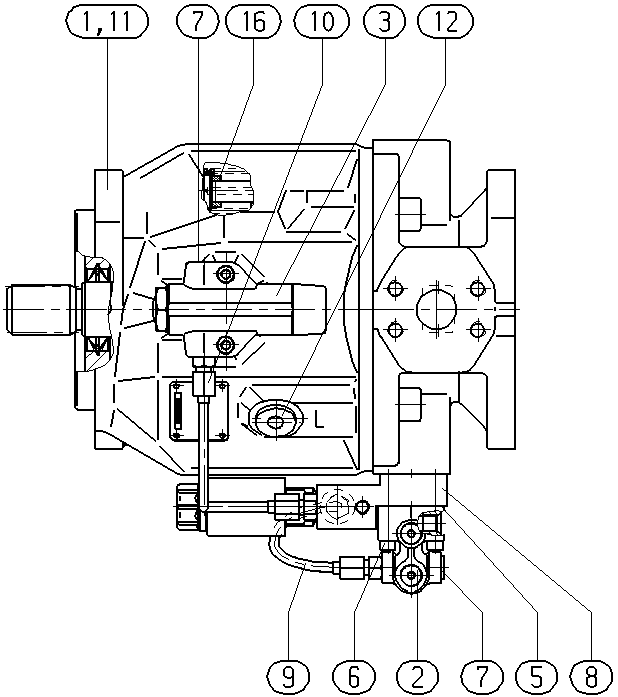

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902483326 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533493 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533936 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902434482 | SEAL | 1 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 4 | ||
| R910764647 | SCREW PLUG | 3 | ||
| R902483357 | VALVE PLATE Assembly parts list →L | 1 | ||
| R902417495 | PIPING Assembly parts list →L | 1 | ||
| R902417491 | PIPING Assembly parts list →L | 1 | ||
| R902483372 | POWER DIAGRAM | 1 | ||
| R910967343 | SCREW PLUG | 1 | ||
| R910918061 | SIDE MARKER RING | 1 | ||
| 51 | R909154493 | SAFETY CAP | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 74 | 74 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom | 42 |
| Through drive | 101-2 (B) 1 in 15T 16/32DP | K04 |
