Unit · AXIAL-PISTON PUMP
A A10V O180 DRG /32R-VSB22U04R902483278
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO180DRG/32R-VSB22U04, material number R902483278. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off hydraulic remote controlled (DRG). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Through drive: only for port plate 22/72 and 32/82, 101-2 (B) 1 in 15T 16/32DP (U04).
- Number
- R902483278
- Type code
- A A10V O180 DRG /32R-VSB22U04
- Group
- A10VO 180
- Edition
- 06/2020

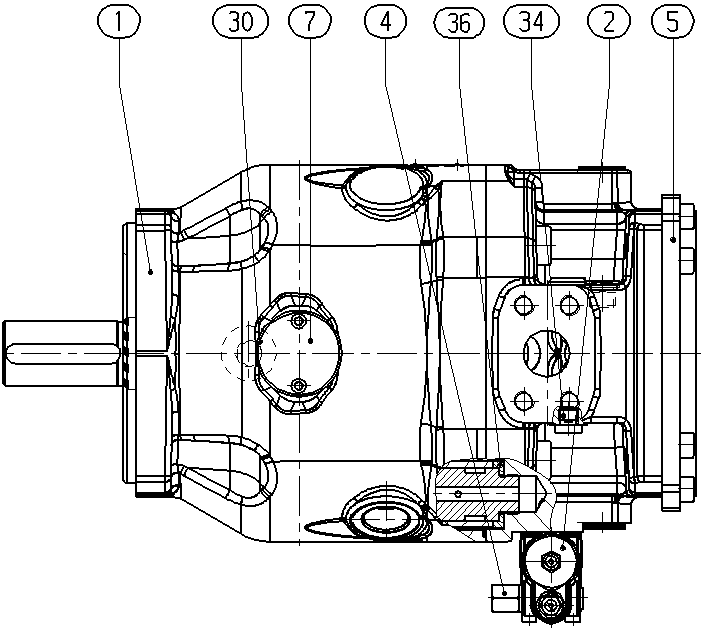

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902452121 | BASE UNIT Assembly parts list →L | 1 | ||
| R902483221 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902409426 | ADAPTER Assembly parts list →L | 1 | ||
| R902447049 | ATTACHMENT KIT | 1 | ||
| R910967426 | COVER Assembly parts list →L | 1 | ||
| R909156652 | SCREW PLUG | 1 | ||
| R913011609 | SCREW PLUG | 1 | ||
| R902454278 | WASHER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 180 | 180 |
| Control devices | pressure cut-off hydraulic remote controlled | DRG |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Through drive | Only for port plate 22/72 and 32/82, 101-2 (B) 1 in 15T 16/32DP | U04 |
