Unit · AXIAL-PISTON PUMP
A A10VNO 45ED 74/52R-VSC12K68P -S3044R902483366
Axial piston pump Bosch Rexroth series A10VNO, type code AA10VNO45ED74/52R-VSC12K68P-S3044, material number R902483366. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: higher (S). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: according to ISO 6162 laterally opposite for through drive (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 3044.
- Number
- R902483366
- Type code
- A A10VNO 45ED 74/52R-VSC12K68P -S3044
- Group
- A10VNO 45
- Edition
- 06/2020

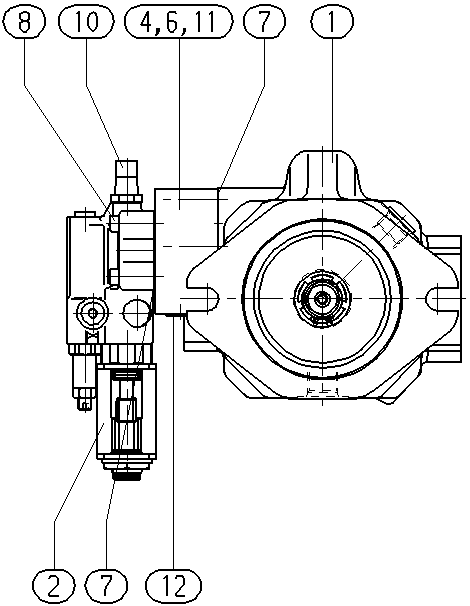

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902483243 | BASE UNIT Assembly parts list →L | 1 | ||
| R902547592 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902456342 | INTERMEDIATE PLATE | 1 | ||
| R910110159 | SOCKET HEAD CAP SCREW | 4 | ||
| R902434482 | SEAL | 2 | ||
| R910900443 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831568 | SAFETY CAP | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909157039 | SCREW PLUG | 1 | ||
| 13 | R902532435 | SAFETY CAP | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | higher | S |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | according to ISO 6162 laterally opposite for through drive | 12 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
| Connector for solenoids | DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) | P |
