Unit · AXIAL-PISTON PUMP

A A10V O100DFLR1/31R-VSC62K68R902483830

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO100DFLR1/31R-VSC62K68, material number R902483830. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68).

Number
R902483830
Type code
A A10V O100DFLR1/31R-VSC62K68
Group
A10VO 100
Edition
06/2020

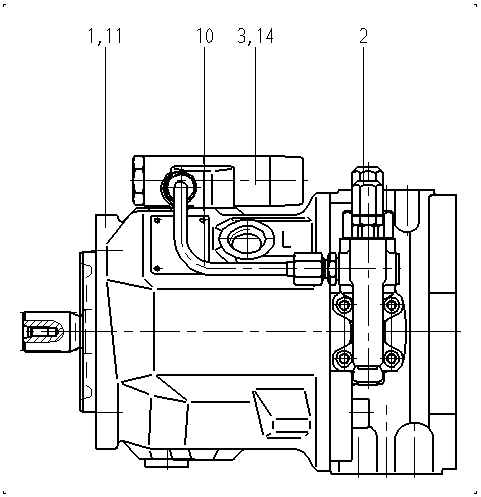

A A10V O100DFLR1/31R-VSC62K68 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902450866BASE UNIT Assembly parts list →L1
R902451761CONTROL VALVE Assembly parts list →L1
R902533217CONTROL VALVE Assembly parts list →L1
R910960141PIPING Assembly parts list →L1
R910907515POWER DIAGRAM1
R909154478SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)100100
Control devicePressure, flow and power controllerDFLR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive62
Through drive101-2 (B) 7/8 in 13T 16/32DPK68
