Unit · AXIAL-PISTON PUMP
AA10VSO10DG/52W-VSC14N00-S3068R902484169
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO10DG/52W-VSC14N00-S3068, material number R902484169. Nominal size: NG 10. Operating mode: pump, open circuit (O). Control device: two-point control, direct operated (DG). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-1 2-hole (C). Through drive: without through drive (N00). Special version no. 3068.
- Number
- R902484169
- Type code
- AA10VSO10DG/52W-VSC14N00-S3068
- Group
- A10VSO 10
- Edition
- 06/2020

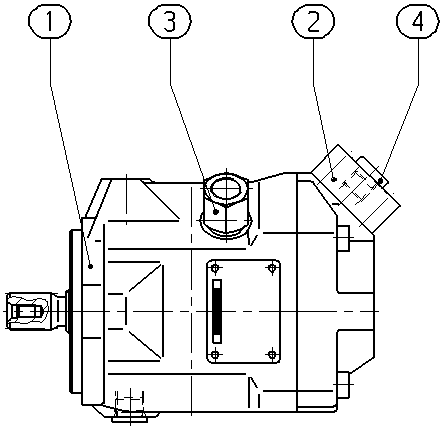

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902484170 | BASE UNIT Assembly parts list →L | 1 | ||
| R910939070 | PLATE Assembly parts list →L | 1 | ||
| R910928022 | ADAPTER Assembly parts list →L | 1 | ||
| R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 10 | 10 |
| Control device | Two-point control, direct operated | DG |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 2-hole | C |
| Through drive | Without through drive | N00 |
