Unit · AXIAL-PISTON PUMP
A A10V O140 DR /32R-VSD12N00 ESO275R902484179
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140DR/32R-VSD12N00ESO275, material number R902484179. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure controller hydraulic (DR). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: at bottom, on opposite side, metric fastening thread (12). Through drive: without through drive (N00). Special version no. 275.
- Number
- R902484179
- Type code
- A A10V O140 DR /32R-VSD12N00 ESO275
- Group
- A10VO 140
- Edition
- 05/2020

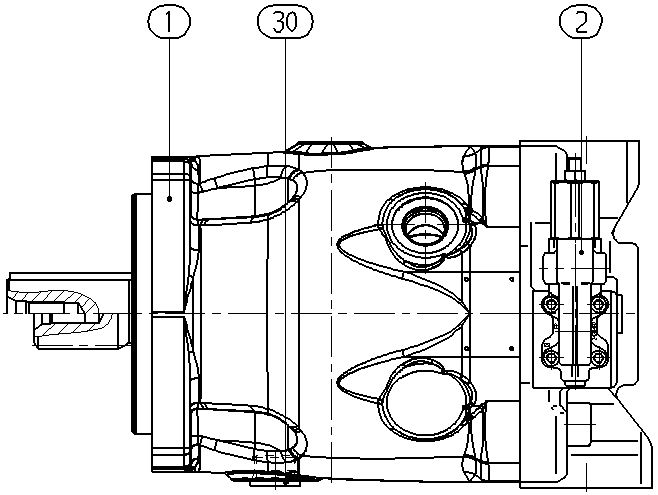

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902463535 | BASE UNIT Assembly parts list →L | 1 | ||
| R902460257 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910967351 | SCREW PLUG | 1 | ||
| 70 | R902421947 | SHIPPING PROTECTION | 1 | |
| 71 | R902421950 | SHIPPING PROTECTION | 1 | |
| 72 | R902603191 | SEAL SCREW | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 140 | 140 |
| Control devices | Pressure controller hydraulic | DR |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Working port | at bottom, on opposite side, metric fastening thread | 12 |
| Through drive | Without through drive | N00 |
