Unit · AXIAL-PISTON PUMP
AL A10VNO 63 DRS /52R-VSC11N00 -S3093R902484301
Axial piston pump Bosch Rexroth series A10VNO, type code ALA10VNO63DRS/52R-VSC11N00-S3093, material number R902484301. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DRS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: higher (S). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: according to ISO 6162 rear not for through drive (11). Through drive: without through drive (N00). Special version no. 3093.
- Number
- R902484301
- Type code
- AL A10VNO 63 DRS /52R-VSC11N00 -S3093
- Group
- A10VNO 63
- Edition
- 06/2020

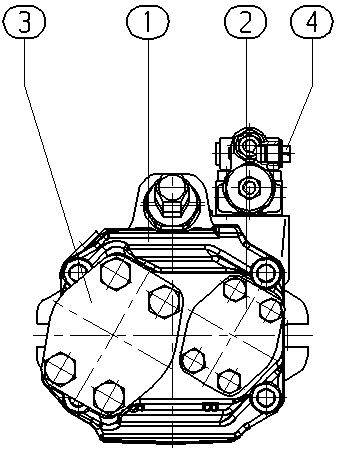

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902484847 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902400586 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 63 | 63 |
| Control device | with flow controller X-T plugged with flushing function | DRS |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | higher | S |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | according to ISO 6162 rear not for through drive | 11 |
| Through drive | Without through drive | N00 |
Other versions 13
- R902560113 A A10VNO 63 DRS /52R-VSC11N00
- R902482022 A A10VNO 63 DRS /52R-VSC11N00 -S2968
- R902483597 A A10VNO 63 DRS /52R-VSC11N00 -S3049
- R902484847 A A10VNO 63 DRS /52R-VSC11N00 -S3093
- R902492636 A A10VNO 63 DRS /52R-VSC11N00 -S3410
- R902566636 A A10VNO 63 DRS /52R-VSC11N00 -S5427
- R902448762 A A10VNO 63 DRS/52R-VSC11N00 -S1740
- R902564707 AL A10VNO 63 DRS /52R-VSC11N00
- R902482021 AL A10VNO 63 DRS /52R-VSC11N00 -S2968
- R902483596 AL A10VNO 63 DRS /52R-VSC11N00 -S3049
- R902492112 AL A10VNO 63 DRS /52R-VSC11N00 -S3410
- R902570445 AL A10VNO 63 DRS /52R-VSC11N00 -S4537
- R902573087 AL A10VNO 63 DRS /52R-VSC11N00 -S4601
